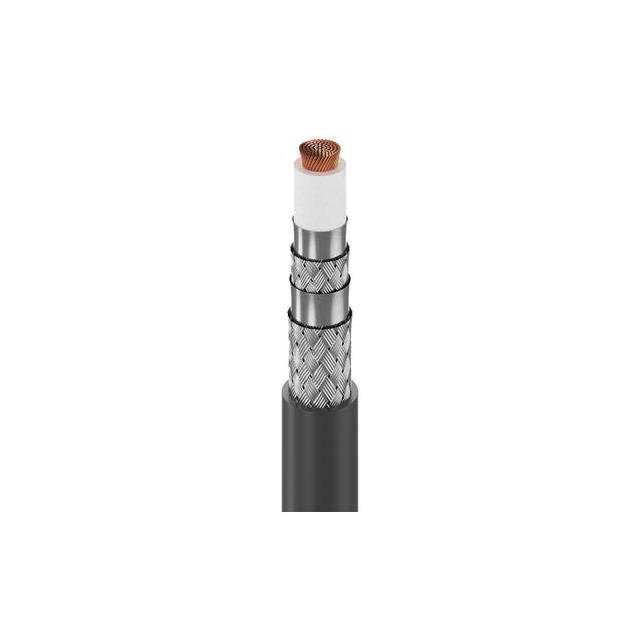

3092F 0101000

Active

Belden Inc.

COAX 20AWG 100 OHM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 20AWG 100 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	3092F 0101000

Cable Group	RG-6
Cable Type	Coaxial - Riser
Conductor Material	Copper, Bare
Conductor Strand [custom]	105
Conductor Strand [custom]	40 AWG
Dielectric Diameter [diameter]	0.183 in
Dielectric Diameter [diameter]	4.65 mm
Dielectric Material	Foam Polyethylene (FPE)
Features	Quad Shield
Impedance	100 Ohms
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	79
Wire Gauge	20 AWG

Part	VoP, Velocity of Propagation	Conductor Strand [custom]	Conductor Strand [custom]	Cable Group	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Wire Gauge	Impedance	Features	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Dielectric Material	Shield Material
Belden Inc. 3092F 0101000	79	105	40 AWG	RG-6	Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	20 AWG	100 Ohms	Quad Shield	Braid Foil	40 % 60 % 100 %	-40 °C	75 ░C	Copper Bare	Coaxial - Riser	Black	0.303 in	7.7 mm	304.8 m	1000 ft	Foam Polyethylene (FPE)	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.46

General part information

Coaxial - Riser Cable 20 AWG RG-6 1000.0' (304.80m) 100 Ohms
