1-1318384-9

Active

TE Connectivity AMP Connectors

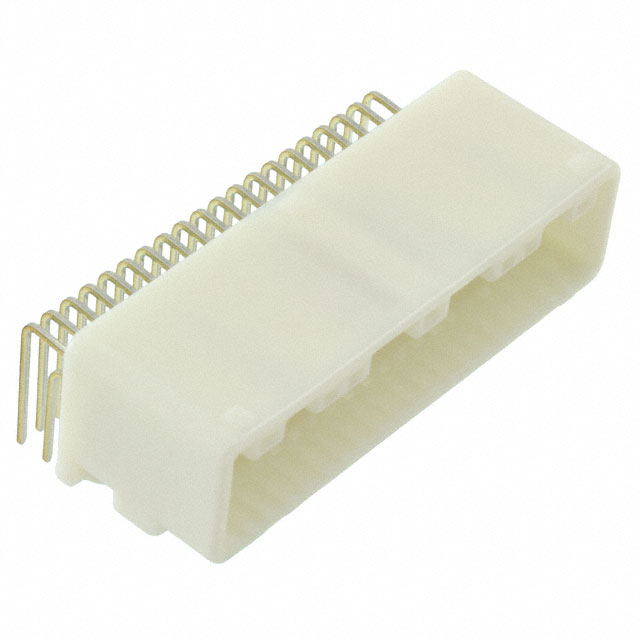

CONN HEADER R/A 40POS 2.2MM

Deep-Dive with AI

Search across all available documentation for this part.

1-1318384-9

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 40POS 2.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1318384-9	1318384 Series

	-	-
Applications	Automotive	Automotive
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.217 in	0.217 in
Contact Length - Mating	5.5 mm	5.5 mm
Contact Length - Post	0.157 in	0.157 in
Contact Length - Post	4 mm	4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square, Rectangular
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder, Push-Pull
Features	Mounting Flange	Mounting Flange
Insulation Color	Natural	Natural
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 - 15.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	40	40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 - 150 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch - Mating	0.087 in	0.087 - 0.197 in
Pitch - Mating	2.2 mm	2.2 - 5 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	12 V	12 V

1318384 Series

CONN HEADER R/A 40POS 2.2MM

Part	Termination	Insulation Material	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Applications	Contact Shape	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Style	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions	Material Flammability Rating	Contact Material	Connector Type	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Type	Fastening Type	Number of Positions Loaded	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
TE Connectivity AMP Connectors 1318384-4	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3 mm	0.118 in	Automotive	Square	12 V	0.217 in	5.5 mm	Board to Cable/Wire	0.087 in	2.2 mm	2	40	UL94 HB	Brass	Header	Natural	Tin	0.157 in	4 mm	Through Hole, Right Angle	Male Pin	Latch Holder	All	Mounting Flange	-30 ░C	105 ░C	0.61 in	15.49 mm
TE Connectivity AMP Connectors 1318384-1	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3 mm	0.118 in		Rectangular	12 V	0.217 in	5.5 mm	Board to Cable/Wire	0.197 "	5 mm	2	40	UL94 HB		Header	Natural	Tin	0.157 in	4 mm	Through Hole, Right Angle	Male Pin	Push-Pull	All	Mounting Flange	-30 ░C	150 °C	0.61 in	15.5 mm
TE Connectivity AMP Connectors 2-1318384-6
TE Connectivity AMP Connectors 1318384-2	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3 mm	0.118 in	Automotive	Square	12 V	0.217 in	5.5 mm	Board to Cable/Wire	0.087 in	2.2 mm	2	40	UL94 HB	Brass	Header	Natural	Tin	0.157 in	4 mm	Through Hole, Right Angle	Male Pin	Latch Holder	All	Mounting Flange	-30 ░C	105 ░C	0.61 in	15.49 mm
TE Connectivity AMP Connectors 1318384-5
TE Connectivity AMP Connectors 1-1318384-9	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3 mm	0.118 in	Automotive	Square	12 V	0.217 in	5.5 mm	Board to Cable/Wire	0.087 in	2.2 mm	2	40	UL94 HB	Brass	Header	Natural	Tin	0.157 in	4 mm	Through Hole, Right Angle	Male Pin	Latch Holder	All	Mounting Flange	-30 ░C	105 ░C	0.61 in	15.49 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.42
		18	$ 7.34
		108	$ 6.53
		504	$ 6.10
		1008	$ 5.44

Description

General part information

1318384 Series

Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
