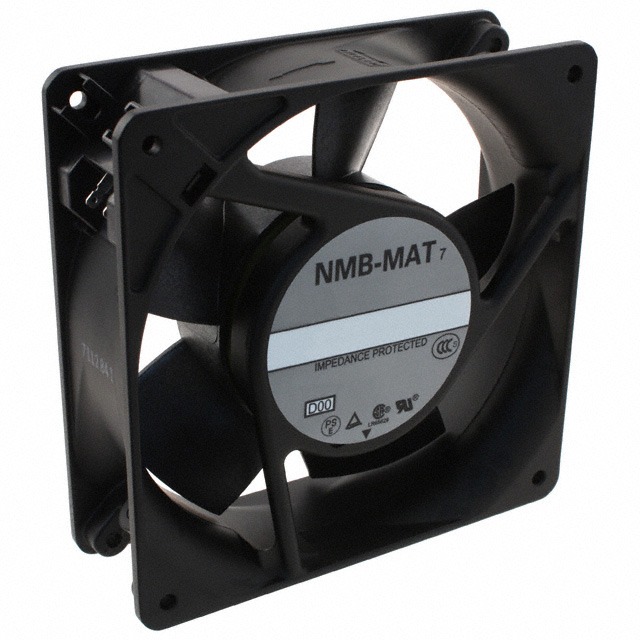

4715FS-12T-B40-D00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans & Blowers Catalog +1

4715FS-12T-B40-D00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC TERM

Deep-Dive with AI

DocumentsDatasheet Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4715FS-12T-B40-D00

Air Flow	2.8 m³/min
Air Flow	100 CFM
Approval Agency	CSA, CE, UL, TUV
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	14 Watts
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	72.5 Pa
Static Pressure	0.291 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Width [y]	38 mm

4715FS Series

Part	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Power (Watts)	Air Flow	Air Flow	Voltage - Rated	RPM	Width [y]	Termination	Noise	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Static Pressure	Static Pressure	Current Rating (Amps)	Approval Agency	Fan Type
NMB TECHNOLOGIES 4715FS-23T-B20-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	8.8 W	80 CFM	2.24 mł/min	230 VAC	2300 RPM	38 mm	2 Terminals	36 dB	119 mm	119 mm	Aluminum	0.13 in H2O	32.5 Pa	50 mA	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23T-B5A-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14 Watts	110 CFM	3.08 mł/min	230 VAC	3100 RPM	38 mm	2 Terminals	45 dB(A)	119 mm	119 mm	Aluminum	0.37 in H2O	92.2 Pa		CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-12T-B40-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14 Watts	100 CFM	2.8 m³/min	115 VAC	2800 RPM	38 mm	2 Terminals	42 dB	119 mm	119 mm	Aluminum	0.291 in H2O	72.5 Pa	0.17 A	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-12T-B30-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14.5 W	90 CFM	2.52 mł/min	115 VAC	2650 RPM	38 mm	2 Terminals	39 dB(A)	119 mm	119 mm	Aluminum	0.22 in H2O	54.8 Pa	0.18 A	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23W-B50-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14 Watts	110 CFM	3.08 mł/min	230 VAC	3100 RPM	38 mm	2 Wire Leads	45 dB(A)	119 mm	119 mm	Aluminum	0.37 in H2O	92.2 Pa		CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23T-B10-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	9 W	70 CFM	1.96 m³/min	230 VAC	1900 RPM	38 mm	2 Terminals	33 dB(A)	119 mm	119 mm	Aluminum	0.12 in H2O	30 Pa	50 mA	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23T-B30-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	12 W	90 CFM	2.52 mł/min	230 VAC	2650 RPM	38 mm	2 Terminals	39 dB(A)	119 mm	119 mm	Aluminum	0.22 in H2O	54.8 Pa	0.09 A	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-12T-B50-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14.4 W	110 CFM	3.08 mł/min	115 VAC	3100 RPM	38 mm	2 Terminals	45 dB(A)	119 mm	119 mm	Aluminum	0.37 in H2O	92.2 Pa	0.19 A	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23T-B40-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14 Watts	100 CFM	2.8 m³/min	230 VAC	3300 RPM	38 mm	2 Terminals	42 dB	119 mm	119 mm	Aluminum	0.28 in H2O	69.7 Pa	0.09 A	CE CSA TUV UL	Tubeaxial
NMB TECHNOLOGIES 4715FS-23T-B50-D00	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	14 Watts	110 CFM	3.08 mł/min	230 VAC	3100 RPM	38 mm	2 Terminals	45 dB(A)	119 mm	119 mm	Aluminum	0.37 in H2O	92.2 Pa		CE CSA TUV UL	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4715FS Series

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 100.0 CFM (2.80mł/min) 2 Terminals
