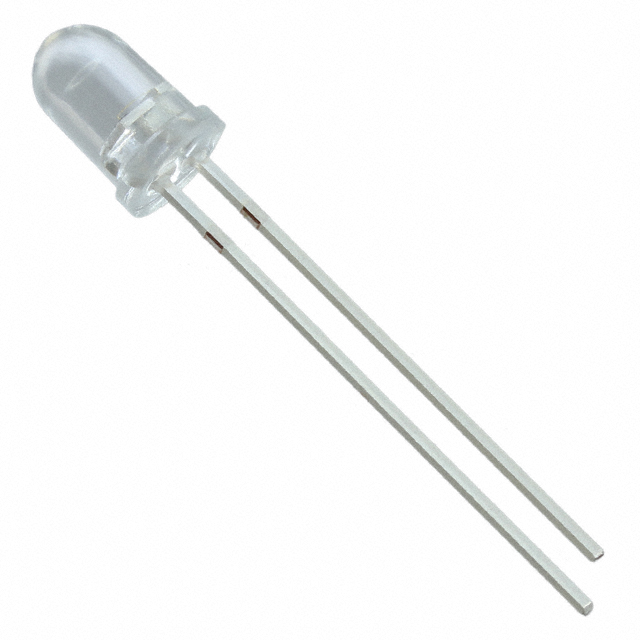

VSLY5940

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA RADIAL

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	VSLY5940

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If	100 mA
Radiant Intensity (Ie) Min @ If [Min]	300 mW/sr
Type	Infrared (IR)
Viewing Angle	6 °
Voltage - Forward (Vf) (Typ)	1.65 V
Wavelength	940 nm

EMITTER IR 940NM 100MA RADIAL

Part	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Wavelength	Radiant Intensity (Ie) Min @ If	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle	Type	Mounting Type	Voltage - Forward (Vf) (Typ)	Orientation
Vishay Semiconductor Opto Division VSLY5940	100 mA	85 °C	-40 °C	Radial	940 nm	100 mA	300 mW/sr	6 °	Infrared (IR)	Through Hole	1.65 V	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.65V 100mA 300mW/sr @ 100mA 6° Radial
