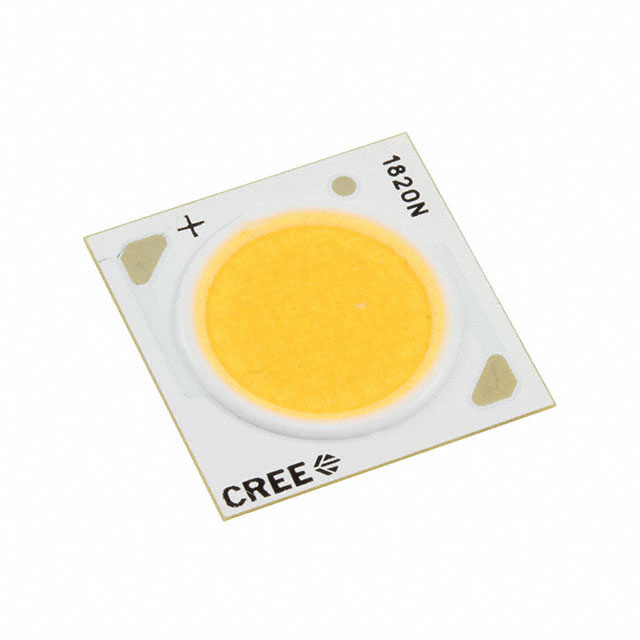

CXB1820-0000-000N0HR435G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1820-0000-000N0HR435G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1820-0000-000N0HR435G

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.05 A
Current - Test	550 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Lumens/Watt @ Current - Test	136 lm/W
Luminous Flux @ Current/Temperature	2690 lm
Luminous Flux @ Current/Temperature [Max]	2780 lm
Luminous Flux @ Current/Temperature [Min]	2600 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXB1820 Series

Part	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Configuration	Type	Light Emitting Surface (LES) [diameter]	Temperature - Test	Color	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Current - Test	CRI (Color Rendering Index)	Lens Type	Height [z]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CCT (K)
Cree LED CXB1820-0000-000N0HR230H	2600 lm	2510 lm	2420 lm	Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	80	Flat	1.7 mm	36 V	127 lm/W	3000 K
Cree LED CXB1820-0000-000N0HS440H	3200 lm	3095 lm	2990 lm	Square	Chip On Board (COB)	12 mm	85 °C	Neutral White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	80	Flat	1.7 mm	35 V	161 lm/W	4000 K
Cree LED CXB1820-0000-000N0UP430U		2033 lm		Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	90	Flat	1.7 mm	35 V	106 lm/W	3000 K
Cree LED CXB1820-0000-00PN0U0A35H				Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	90	Flat	1.7 mm	35 V		3500 K
Cree LED CXB1820-0000-00PN0U0A27G				Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	90	Flat	1.7 mm	35 V		2700 K
Cree LED CXB1820-0000-000N0ZP227H	1965 lm	1898 lm	1830 lm	Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	95	Flat	1.7 mm	35 V	99 lm/W	2700 K
Cree LED CXB1820-0000-000N0HS235G	2990 lm	2885 lm	2780 lm	Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	80	Flat	1.7 mm	36 V	146 lm/W	3500 K
Cree LED CXB1820-0000-000N0HR435G	2780 lm	2690 lm	2600 lm	Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	80	Flat	1.7 mm	36 V	136 lm/W	3500 K
Cree LED CXB1820-0000-000N0HR227H	2600 lm	2510 lm	2420 lm	Square	Chip On Board (COB)	12 mm	85 °C	Warm White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	80	Flat	1.7 mm	36 V	127 lm/W	2700 K
Cree LED CXB1820-0000-000N0BS240E	2990 lm	2885 lm	2780 lm	Square	Chip On Board (COB)	12 mm	85 °C	Neutral White	115 °	17.85 mm	17.85 mm	1.05 A	550 mA	70	Flat	1.7 mm	36 V	146 lm/W	4000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.76

Description

General part information

CXB1820 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1820 White, Warm Square
