1217118-1
ActiveTE Connectivity AMP Connectors

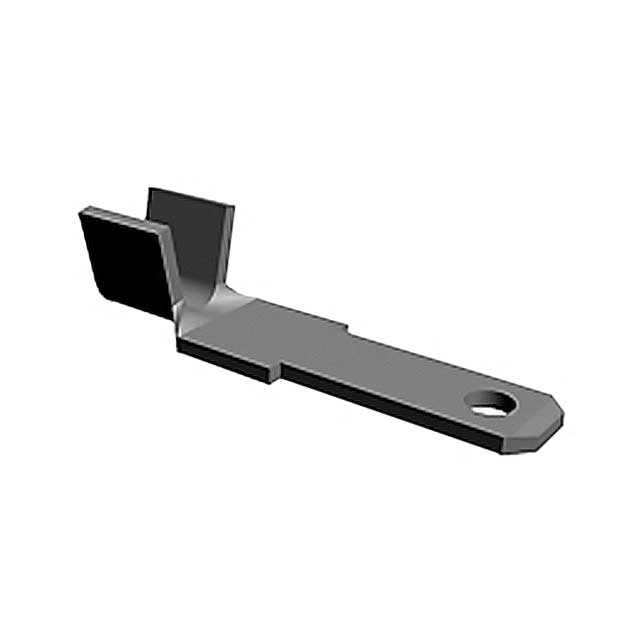

CONN QC TAB 16-20AWG 0.110 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
1217118-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 16-20AWG 0.110 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217118-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 14.48 mm |
| Length - Overall [x] | 0.57 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.24 mm |
| Tab Length | 0.285 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 390000 | $ 0.07 | |
1217118 Series
CONN QC TAB 16-20AWG 0.110 CRIMP
| Part | Contact Material | Termination | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Terminal Type | Insulation | Gender | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Tab Width | Tab Width | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217118-1 | Brass | Crimp | 14.48 mm | 0.57 in | 0.02 " | 0.51 mm | Standard | Non-Insulated | Male | 7.24 mm | 0.285 in | 16 AWG | 20 AWG | Tin | 2.79 mm | 0.11 " | Free Hanging (In-Line) |
Description
General part information
1217118 Series
0.110" (2.79mm) Quick Connect Male 16-20 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
