Q-2500S000H1.5M

Active

Amphenol Custom Cable

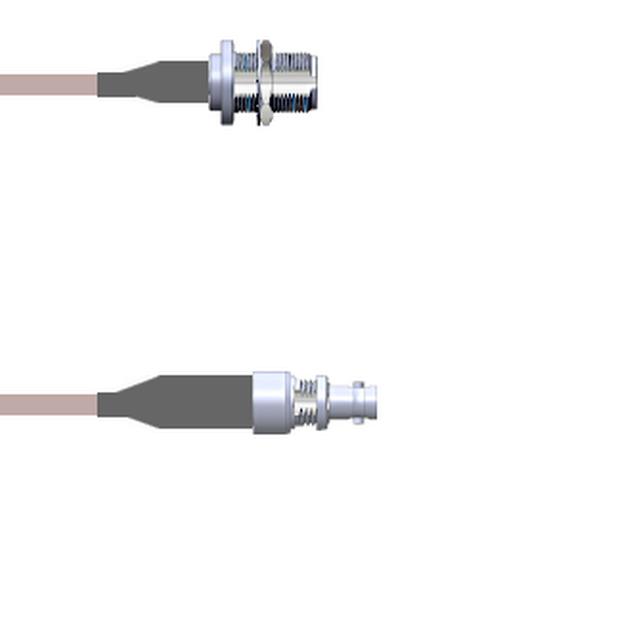

CBL ASSY HDBNC-NTYPE JK-JK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2500S000H1.5M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JK-JK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2500S000H1.5M

1st Connector	HD-BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2500S0 Series

Part	1st Contact Gender	2nd Connector Mounting Feature	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	1st Connector	Features	Style	1st Connector Mounting Feature	Cable Type	Overall Impedance	2nd Connector Mounting Type	Color	1st Connector Mounting Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2500S000H108i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-2500S000H1.5M	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-2500S000H060i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	1.5 m	5 ft	5 '
Amphenol Custom Cable Q-2500S000H024i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	609.6 mm		24 "
Amphenol Custom Cable Q-2500S000H2.5M	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-2500S000H009i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	228.6 mm		9 "
Amphenol Custom Cable Q-2500S000H084i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-2500S000H012i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	304.8 mm		12 "
Amphenol Custom Cable Q-2500S000H018i	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount				457.2 mm	457.2 mm
Amphenol Custom Cable Q-2500S000H.75M	Female	Bulkhead - Front Side Nut	N-Type Jack	Female	6000 MHz	HD-BNC Jack	Shielded	HD-BNC to N-Type	Bulkhead - Front Side Nut	RG-142	50 Ohms	Panel Mount	Copper	Panel Mount	750 mm		29.53 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 146.97
		25	$ 144.10
		50	$ 141.22
		100	$ 138.35
		250	$ 135.47

Description

General part information

Q-2500S0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-142 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
