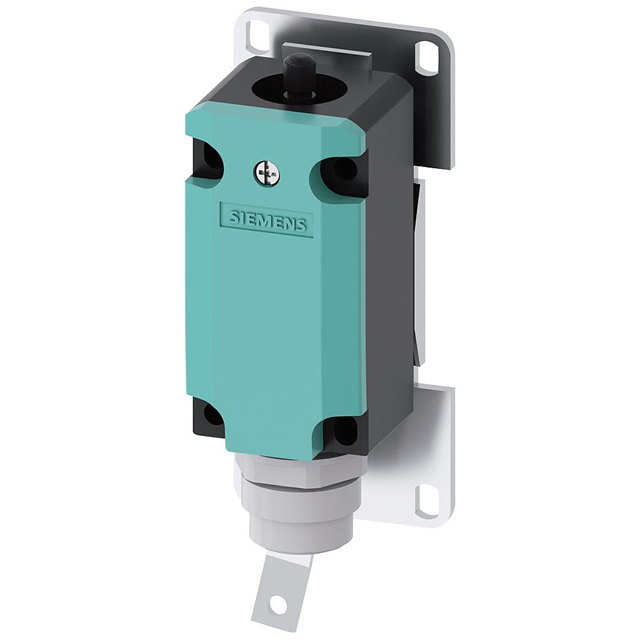

Specification	3SE51150CA001AD0

Actuator Type	Round (Pin Plunger)
Circuit	DPST-NO/NC
Current Rating	6 A, 3 A
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	2039 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom, Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

3SE5115 Series

Part	Switch Function	Circuit	Mounting Type	Actuator Type	Current Rating	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Electrical Life (Cycles)	Ingress Protection IP Rating	Ingress Protection Description	Voltage Rating - AC	Operating Force	Termination Style	Mechanical Life (Cycles)
Siemens 3SE51150LA001AD1	Off-Mom On-Mom	3PST-2NC/1NO	Chassis Mount	Round (Pin Plunger)	3 A 6 A	24 V	85 °C	-25 °C	100000 Cycles	IP65	Dust Tight Water Resistant	125 V	2039 gf	Screw Terminal	15000000 Cycles
Siemens 3SE51150CA001AD0	Off-Mom On-Mom	DPST-NO/NC	Chassis Mount	Round (Pin Plunger)	3 A 6 A	24 V	85 °C	-25 °C	100000 Cycles	IP65	Dust Tight Water Resistant	125 V	2039 gf	Screw Terminal	15000000 Cycles
Siemens 3SE51150KA001AD1	Off-Mom On-Mom	3PST-2NC/1NO	Chassis Mount	Round (Pin Plunger)	3 A 6 A	24 V	85 °C	-25 °C	100000 Cycles	IP65	Dust Tight Water Resistant	125 V	2039 gf	Screw Terminal	15000000 Cycles
