9-927742-4

Active

TE Connectivity AMP Connectors

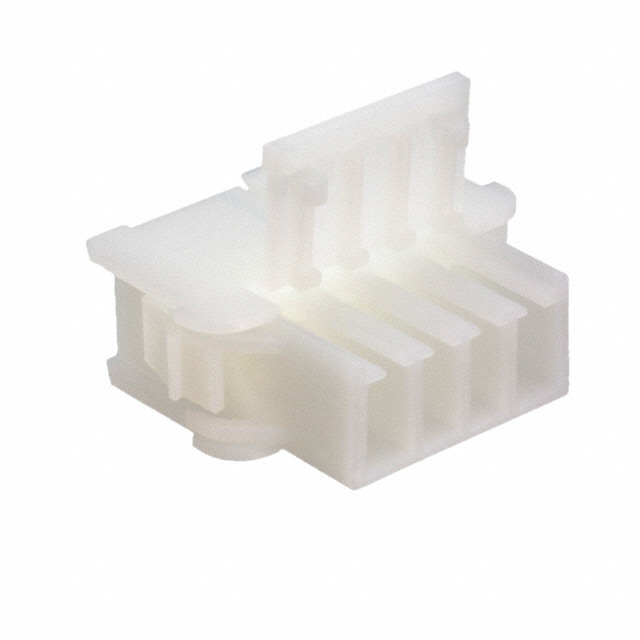

CONN MALE TAB HSG 0.25 4POS NAT

Deep-Dive with AI

Search across all available documentation for this part.

9-927742-4

Active

TE Connectivity AMP Connectors

CONN MALE TAB HSG 0.25 4POS NAT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.35
		10	$ 1.26
		25	$ 1.21
		50	$ 1.20
		200	$ 1.09
		400	$ 1.05
		600	$ 0.96
		1000	$ 0.86
		2600	$ 0.80

Description

General part information

927742 Series

4 Position Housing Connector Male, Tab Natural 0.250" (6.35mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9-927742-4	927742 Series

Color	Natural	Natural, Black
For Use With/Related Products	0.25 in	0.25 in
For Use With/Related Products	Quick Connects	Quick Connects
For Use With/Related Products	6.35 mm	6.35 mm
Gender	Tab, Male	Tab, Male
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	2 - 7
Stacking Direction	Top to Bottom	Top to Bottom
Style	Housing	Housing
Terminal Size	6.35 mm	6.35 mm
Terminal Size	0.25 in	0.25 in
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect

927742 Series

CONN MALE TAB HSG 0.25 5POS NAT

Part	Color	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Gender	Terminal Type	Note	Style	Stacking Direction	Terminal Size	Terminal Size	Number of Positions
TE Connectivity AMP Connectors 927742-5	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in
TE Connectivity AMP Connectors 5-927742-3	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in
TE Connectivity AMP Connectors 6-927742-6	Black	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	6
TE Connectivity AMP Connectors 8-927742-2	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	2
TE Connectivity AMP Connectors 9-927742-3	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in
TE Connectivity AMP Connectors 9-927742-4	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	4
TE Connectivity AMP Connectors 927742-6	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	6
TE Connectivity AMP Connectors 927742-4	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	4
TE Connectivity AMP Connectors 927742-3	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in
TE Connectivity AMP Connectors 927742-7	Natural	0.25 in	Quick Connects	6.35 mm	Male, Tab	Disconnect, Quick Connect	Contacts Not Included	Housing	Top to Bottom	6.35 mm	0.25 in	7
