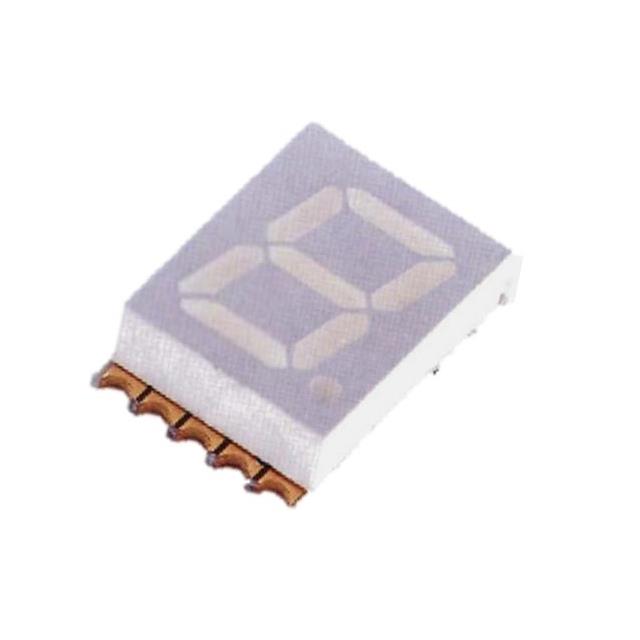

LTS-4812SKR-P
ActiveDiodes Inc
DISPLAY LED 7-SEG 0.39" SGL RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTS-4812SKR-P
ActiveDiodes Inc
DISPLAY LED 7-SEG 0.39" SGL RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTS-4812SKR-P |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.39 in |
| Digit/Alpha Size | 10 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 17.5 mcd |
| Number of Characters [custom] | 1 |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 0.386 in |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [z] | 0.124 in |
| Size / Dimension [z] | 3.15 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 639 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 10 | $ 2.09 | |||
| 100 | $ 1.62 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 10 | $ 2.09 | |||
| 100 | $ 1.62 | |||
| Tape & Reel (TR) | 800 | $ 1.37 | ||
| 1600 | $ 1.31 | |||
| 2400 | $ 1.28 | |||
| 4000 | $ 1.24 | |||
| 5600 | $ 1.22 | |||
| 8000 | $ 1.20 | |||
Description
General part information
LTS-4812 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.591" H x 0.386" W x 0.124" D (15.00mm x 9.80mm x 3.15mm)
