MSPM-24-01
ActiveEssentra Access Solutions

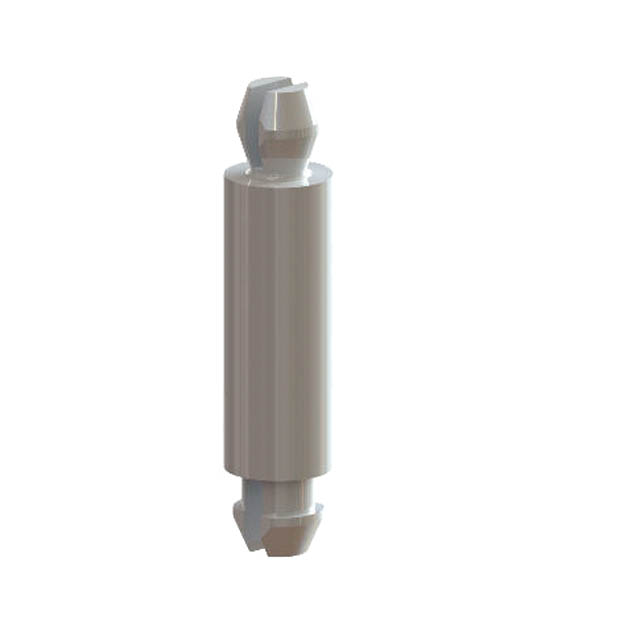

BRD SPT SNAP FIT/LOCK NYL 1 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
MSPM-24-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT/LOCK NYL 1 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSPM-24-01 |
|---|---|
| Between Board Height | 1.5 in |
| Between Board Height | 38.1 mm |
| Between Board Height | |
| Holding Type | Snap Fit |
| Length - Overall [x] | 1.791 " |
| Length - Overall [x] | 45.5 mm |
| Material | Nylon |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 3.18 mm |
| Mounting Panel Thickness | 0.062 in |
| Mounting Panel Thickness | 0.0625 in |
| Mounting Panel Thickness | 1.57 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 5 | $ 0.37 | |||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
Description
General part information
MSPM-24 Series
Board Support Snap Fit / Snap Lock Nylon 1.500" (38.10mm) 1 1/2"
