13-14S-W

Active

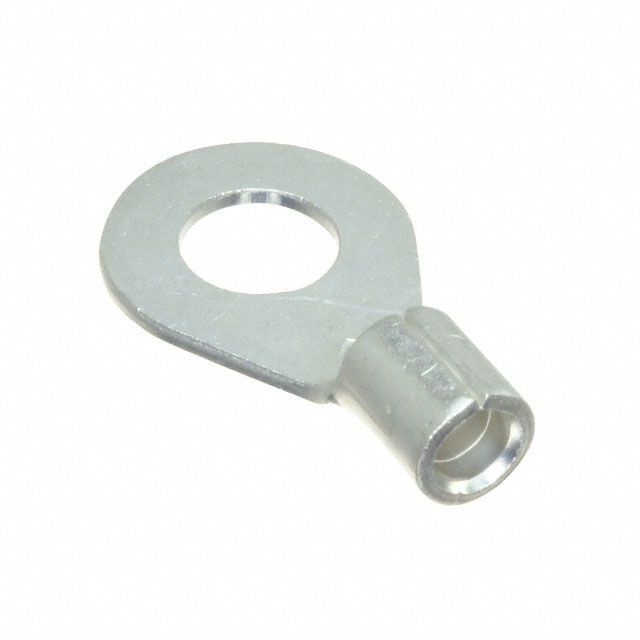

12-10 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

12-10 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

12-10 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Part	Contact Material	Terminal Type	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Features	Termination	Mounting Type	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Insulation
3M 13-14S-W	Copper	Circular	0.25 Stud	12 AWG	10 AWG	0.96 "	24.38 mm	Brazed Seam	Crimp	Free Hanging (In-Line)	Tin	0.54 in	13.72 mm	0.04 in	1.02 mm	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.22
Newark	Each	1000	$ 0.30
		5000	$ 0.27

General part information

Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
