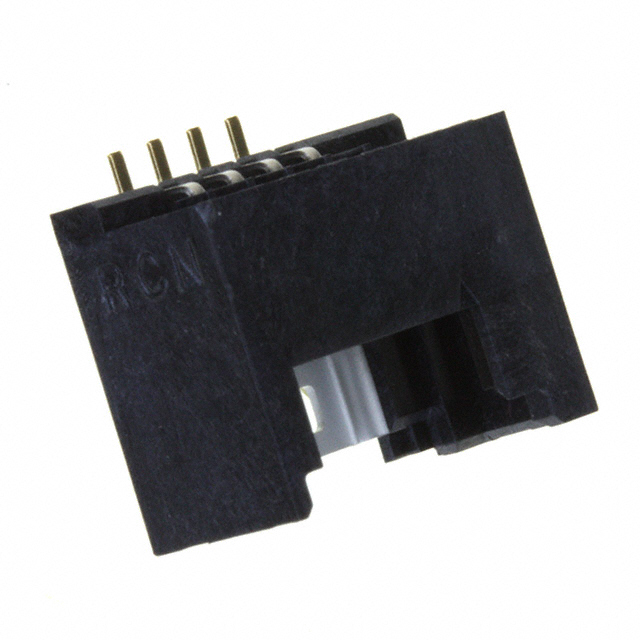

37204-1BE0-004 PL

Active

3M (TC)

CONN RCPT 4P 0.079 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

37204-1BE0-004 PL

Active

3M (TC)

CONN RCPT 4P 0.079 GOLD SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37204-1BE0-004 PL

Applications	Automotive, Medical, General Purpose, Lighting, Industrial
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	32 V

37204 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Style	Current Rating (Amps)	Number of Positions	Voltage Rating	Applications	Contact Length - Post	Contact Length - Post	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Fastening Type	Material Flammability Rating	Features	Termination	Number of Positions Loaded	Contact Material	Contact Shape	Insulation Color	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness - Post
3M (TC) 37204-62A3-004 SC 100	0.203 Ám	8 Áin	Gold	13 mm	0.512 in	Gold	Board to Cable/Wire	3 A	4	32 V	Automotive General Purpose Industrial Lighting Medical	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Female Socket	Latch Holder	UL94 V-0	Board Guide	Kinked Pin Solder	All	Copper Alloy	Square	Black	Receptacle	1	Through Hole	Flash
3M (TC) 37204-1BE0-004 PL	0.203 Ám	8 Áin	Gold	7.7 mm	0.303 in	Gold	Board to Cable/Wire	3 A	4	32 V	Automotive General Purpose Industrial Lighting Medical			Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Female Socket	Latch Holder	UL94 V-0	Board Guide	Solder	All	Copper Alloy	Square	Black	Receptacle	1	Surface Mount Right Angle	Flash
3M (TC) 37204-12E0-004 PL	0.203 Ám	8 Áin	Gold	7.7 mm	0.303 in	Gold	Board to Cable/Wire	3 A	4	32 V	Automotive General Purpose Industrial Lighting Medical			Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Female Socket	Latch Holder	UL94 V-0		Solder	All	Copper Alloy	Square	Black	Receptacle	1	Surface Mount Right Angle	Flash
3M (TC) 37204-12E0-004	0.203 Ám	8 Áin	Gold	7.7 mm	0.303 in	Gold	Board to Cable/Wire	3 A	4	32 V	Automotive General Purpose Industrial Lighting Medical			Polyolefin (PO)	0.079 in	2 mm	Female Socket	Latch Holder	UL94 V-0		Solder	All	Copper Alloy	Square	Black	Receptacle	1	Surface Mount Right Angle	Flash
