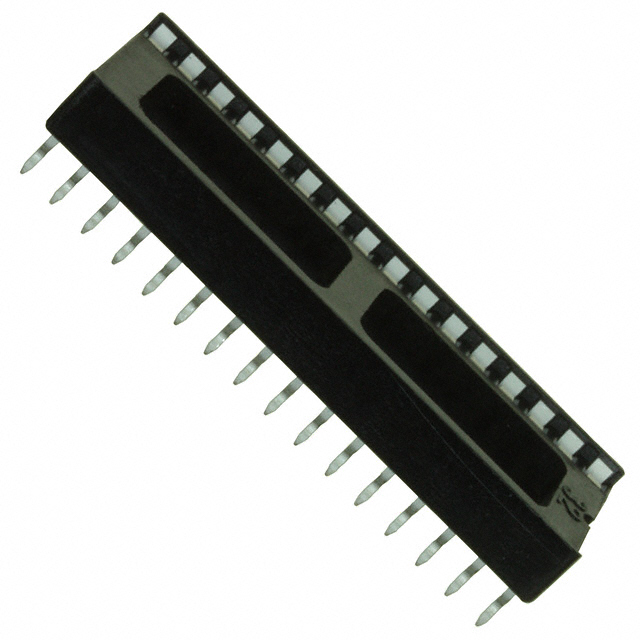

4832-6004-CP

Active

3M (TC)

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Search across all available documentation for this part.

Active

3M (TC)

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Technical Specifications

Parameters and characteristics for this part

Specification	4832-6004-CP

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2 x 16
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Type	Type	Type	Termination	Mounting Type	Contact Material - Post	Pitch - Post	Pitch - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Features	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating
3M (TC) 4832-6004-CP	DIP	0.6 in	15.24 mm	Solder	Through Hole	Phosphor Bronze	2.54 mm	0.1 in	UL94 V-0	35 µin	0.9 µm	2 x 16	32	-25 °C	85 °C	Tin	Open Frame	0.1 in	2.54 mm	1 A	35.4 µin	0.9 µm	Phosphor Bronze
3M (TC) 4832-6000-CP	DIP	0.6 in	15.24 mm	Solder	Through Hole	Phosphor Bronze	2.54 mm	0.1 in	UL94 V-0	35 µin	0.9 µm	2 x 16	32	-25 °C	85 °C	Tin	Open Frame	0.1 in	2.54 mm	1 A	35.4 µin	0.9 µm	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
