LMD300 Series

Part	Approval Agency	Dimming	Voltage - Output	Voltage - Input (Max)	Ratings	Topology	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Power (Watts)	Type	Termination Style	Number of Outputs	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Input (Min)	Weight	Mounting Type	For Use With/Related Products	Accessory Type
CreeLED, Inc. LMD300-0040-C900-7030000	CE CQC cULus	Analog	40 V	305 V	IP20 NEMA 410	AC DC Converter	86 %	70 °C	0 °C	900 mA	36 W	Constant Current	Wire Leads	1	3.54 in	3.54 in	1.48 in	108 V
CreeLED, Inc. LMD300-0040-C900-2030000	CE CQC cULus	Analog	39 V	264 V	IP20 NEMA 410	AC DC Converter	86 %	70 °C	0 °C	900 mA	35 W	Constant Current	Terminal Block	1	8.07 in	3.15 in	1.38 in	207 VAC	0.581 lb	Chassis Mount
CreeLED, Inc. LMD300-0040-C900-7030000	CE CQC cULus	Analog	40 V	305 V	IP20 NEMA 410	AC DC Converter	86 %	70 °C	0 °C	900 mA	36 W	Constant Current	Wire Leads	1	3.54 in	3.54 in	1.48 in	108 V	0.43 lb	Chassis Mount
CreeLED, Inc. LMD300-CA00-0000-0000001																					LMH2 TrueWhite® LED Module	Cover

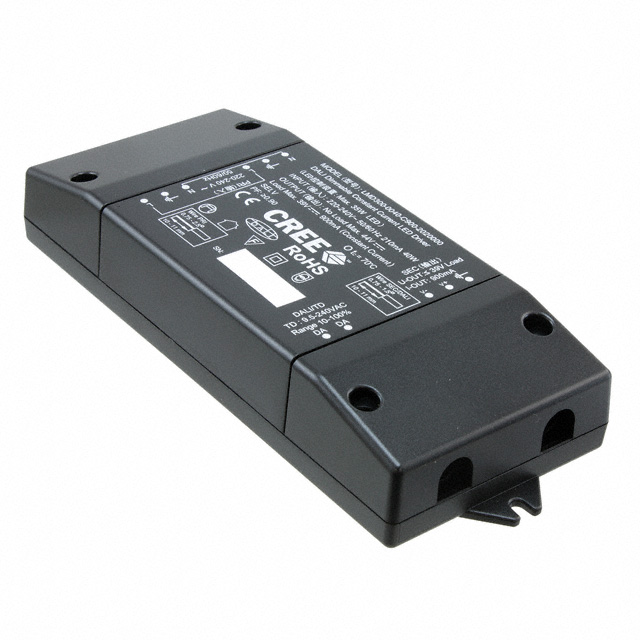

CreeLED, Inc. LMD300-0040-C900-2020000	CE CQC cULus	DALI	39 V	264 V	IP20 NEMA 410	AC DC Converter	85 %	70 °C	0 °C	900 mA	35 W	Constant Current	Wire Leads	1	8.07 in	3.15 in	1.38 in	207 VAC	0.581 lb	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
