CONN EDGE DUAL FMALE 68POS 0.156

857-068-458-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 68POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

857-068 Series

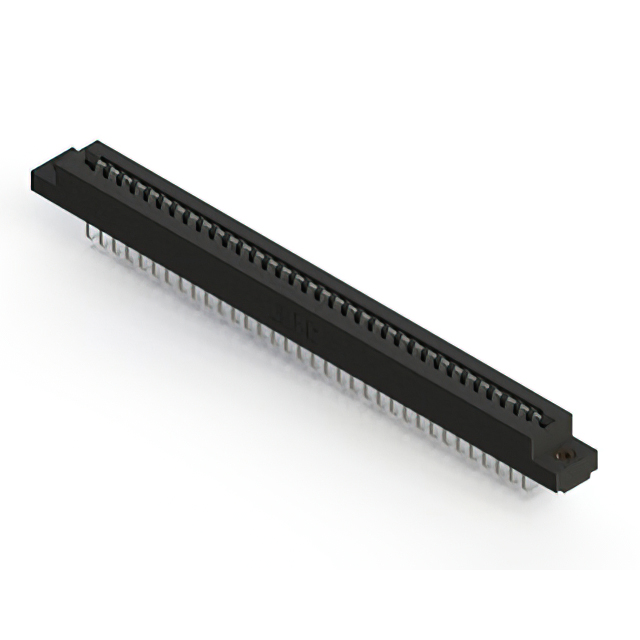

68 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	857-068-458-207

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole, Right Angle
Number of Positions	68, 34
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	2 rows

857-068 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Contact Finish Thickness	Card Type	Number of Positions	Read Out	Contact Finish	Pitch	Flange Feature Diameter	Flange Feature	Gender	Number of Rows	Color	Contact Material	Termination	Mounting Type	Card Thickness (Min)	Card Thickness (Max)	Material - Insulation	Termination Rows	Features
EDAC Inc. 857-068-558-212	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Single	Gold	0.156 in	0.128 in	Side Mount Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Right Angle Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-068-500-208	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Dual	Gold	0.156 in		4-40 Flush Mount Threaded Insert Top Opening	Female	2	Black	Copper Alloy	Solder Eyelet(s)	Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-068-455-212	125 °C	-40 °C	Semi Bellows		Dual Edge Non Specified	34 68	Dual	Tin	0.156 in	0.128 in	Side Mount Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Board Edge Straddle Mount	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows	Card Extender
EDAC Inc. 857-068-456-212	125 °C	-40 °C	Semi Bellows		Dual Edge Non Specified	34 68	Dual	Tin	0.156 in	0.128 in	Side Mount Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Board Edge Straddle Mount	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows	Card Extender
EDAC Inc. 857-068-540-207	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Dual	Gold	0.156 in		Flush Mount M3 Threaded Insert Top Opening	Female	2	Black	Copper Alloy	Wire Wrap	Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-068-560-204	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Dual	Gold	0.156 in	0.156 in	Flush Mount Top Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Board Edge Straddle Mount	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows	Card Extender
EDAC Inc. 857-068-460-204	125 °C	-40 °C	Semi Bellows		Dual Edge Non Specified	34 68	Dual	Tin	0.156 in	0.156 in	Flush Mount Top Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Board Edge Straddle Mount	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows	Card Extender
EDAC Inc. 857-068-559-212	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Single	Gold	0.156 in	0.128 in	Side Mount Opening Unthreaded	Female	2	Black	Copper Alloy	Solder	Right Angle Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-068-458-207	125 °C	-40 °C	Semi Bellows		Dual Edge Non Specified	34 68	Single	Tin	0.156 in		Flush Mount M3 Threaded Insert Top Opening	Female	2	Black	Copper Alloy	Solder	Right Angle Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-068-520-201	125 °C	-40 °C	Semi Bellows	10 Ąin	Dual Edge Non Specified	34 68	Dual	Gold	0.156 in			Female	2	Black	Copper Alloy	Solder	Through Hole	0.054 in	0.07 in	Polyphenylene Sulfide PPS	2 rows
