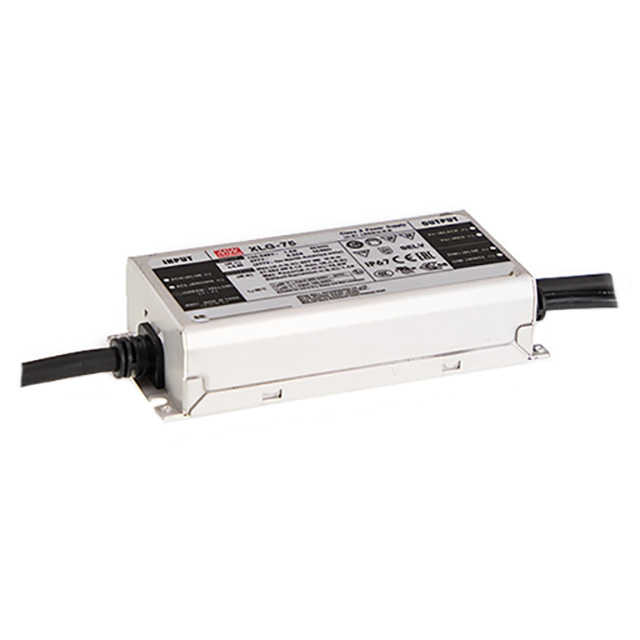

XLG-75-H-A
ActiveMEAN WELL USA Inc.
75W CONSTANT POWER MODE LED DRIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLG-75-H-A
ActiveMEAN WELL USA Inc.
75W CONSTANT POWER MODE LED DRIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLG-75-H-A |
|---|---|
| Approval Agency | CCC, CB, cURus, EAC, ENEC, RCM, CE |
| Current - Output (Max) [Max] | 1.4 A |
| Efficiency | 90 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 75 W |
| Ratings | IP67 |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output [Max] | 56 V |
| Voltage - Output [Min] | 27 V |
XLG-75 Series
| Part | Ratings | Efficiency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Voltage - Input (Max) [Max] | Termination Style | Voltage - Output [Min] | Voltage - Output [Max] | Approval Agency | Type | Number of Outputs | Power (Watts) | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Topology | Voltage - Input (Min) [Min] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | IP67 | 90 % | 4.2 kV | 90 °C | -40 °C | OCP OTP OVP SCP | Chassis Mount | 305 VAC | Wire Leads | 27 V | 56 V | CB CCC CE cURus EAC ENEC RCM | Constant Current | 1 | 75 W | 1.4 A | 125 mm | 32 mm | 4.92 in | 1.26 in | 2.48 in | 63 mm | AC DC Converter | 100 VAC | |
MEAN WELL USA Inc. | IP67 | 90 % | 4.2 kV | 90 °C | -40 °C | OCP OTP OVP SCP | Chassis Mount | 305 VAC | Wire Leads | CB CCC CE cURus EAC ENEC RCM | Constant Current | 1 | 125 mm | 32 mm | 4.92 in | 1.26 in | 2.48 in | 63 mm | AC DC Converter | 100 VAC | 24 V | ||||
MEAN WELL USA Inc. | IP67 | 89 % | 4.2 kV | 90 °C | -40 °C | OCP OTP OVP SCP | Chassis Mount | 305 VAC | Wire Leads | CB CCC CE cURus EAC ENEC RCM | Constant Current | 1 | 60 W | 5 A | 125 mm | 32 mm | 4.92 in | 1.26 in | 2.48 in | 63 mm | AC DC Converter | 100 VAC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.70 | |
| 5 | $ 23.50 | |||
| 10 | $ 22.63 | |||
Description
General part information
XLG-75 Series
1.4A 27 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
