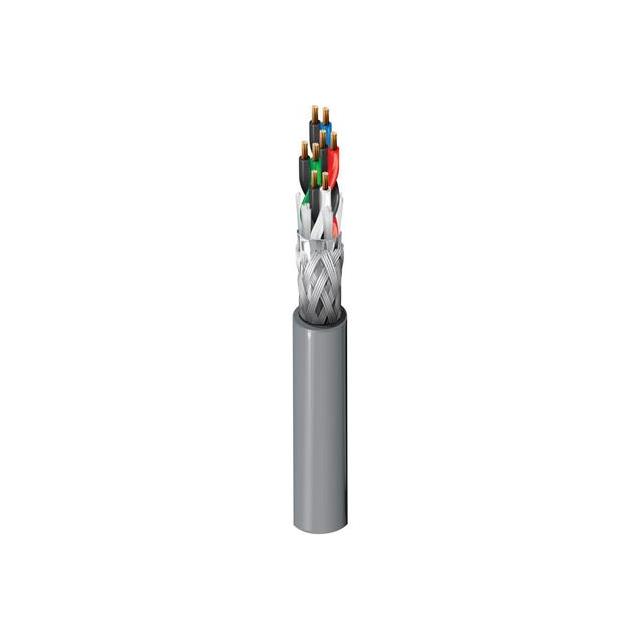

8134 0601000

Active

Belden Inc.

MULTI-PAIR 8COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8134 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.26 mm
Jacket (Insulation) Diameter [diameter]	0.286 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Conductor Material	Shield Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket Color	Ratings	Shield Coverage	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Insulation	Length	Length
Belden Inc. 8134 0601000	Copper Tinned	Braid Foil	8	-30 ░C	80 C	Multi-Pair	Chrome	UL Style 2919	65 % 100 %	Aluminum Copper Tinned	36 AWG	7	28 AWG	Drain Wire	Poly-Vinyl Chloride (PVC)	7.26 mm	0.286 in	Computer	Foam Polyethylene (FPE)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.36

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 1000.0' (304.8m)
