415-0199-M1.0

Active

Cinch Connectivity Solutions Johnson

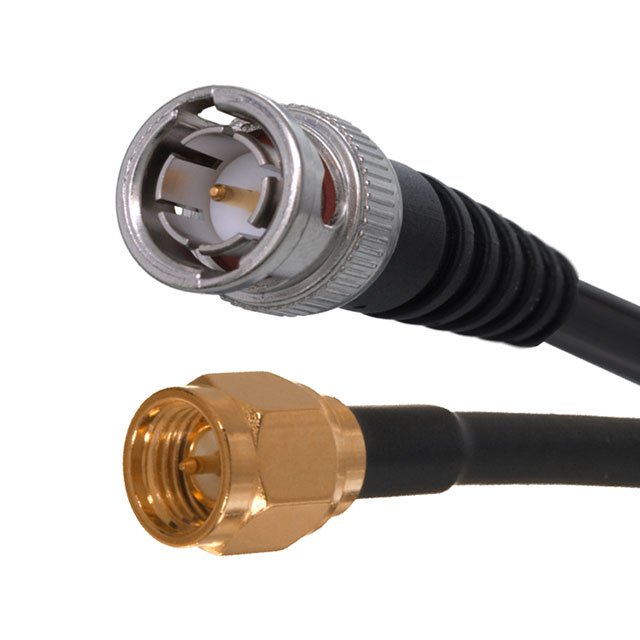

CBL ASSY BNC-SMA PLUG-PLUG 3.3'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CBL ASSY BNC-SMA PLUG-PLUG 3.3'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-174 39.4" (1.0m) 3.3'

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CBL ASSY BNC-SMA PLUG-PLUG 10'

Part	1st Connector	Connector Impedance	Length	Length	Length	Cable Type	Style	Overall Impedance	Features	Color	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Cable Impedance	Frequency - Max [Max]	2nd Connector	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Johnson 415-0199-120	BNC Plug	50 Ohms	10 ft	3 m	10 '	RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
Cinch Connectivity Solutions Johnson 415-0199-M2.0	BNC Plug	50 Ohms	78.7 in	2 m	6.6 ft	RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
Cinch Connectivity Solutions Johnson 415-0199-036	BNC Plug	50 Ohms	36 in	91.44 cm		RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
Cinch Connectivity Solutions Johnson 415-0199-MM500	BNC Plug	50 Ohms	19.69 "	50 cm		RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
Cinch Connectivity Solutions Johnson 415-0199-M1.0	BNC Plug	50 Ohms	39.4 in	1 m	3.3 ft	RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
Cinch Connectivity Solutions Johnson 415-0199-060	BNC Plug	50 Ohms	5 '	1.5 m	5 ft	RG-174	BNC to SMA	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	Male	Free Hanging (In-Line)	50 Ohms	1 GHz	SMA Plug	-40 °C	80 C
