Specification	52454-1

Color	Red
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.14 in
Insulation Diameter (Min)	0.105 in
Length - Overall	0.991 in
Length - Ring Center to Termination	0.27 in
Length - Termination	0.426 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.164 in
Width - Outer Edges	0.281 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

52454 Series

Part	Color	Contact Finish	Width - Outer Edges	Contact Material	Mounting Type	Stud/Tab Size	Insulation	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Type	Termination	Length - Overall	Insulation Diameter (Min)	Insulation Diameter (Max)	Tongue Inside Opening	Material - Insulation	Length - Ring Center to Termination	Length - Termination

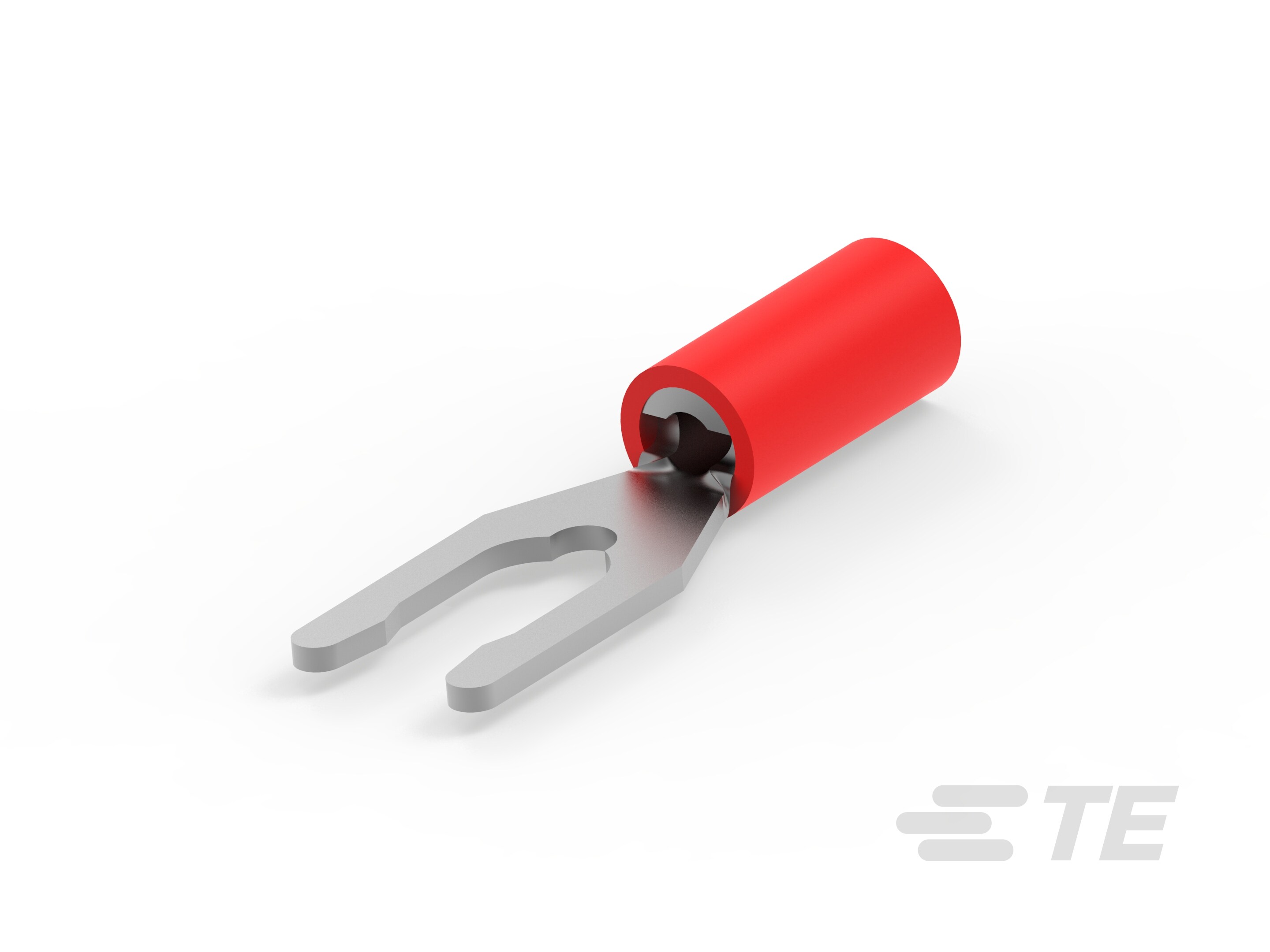

TE Connectivity AMP Connectors 52454-1	Red	Tin	0.281 in	Phosphor Bronze	Free Hanging (In-Line)	8 Stud	Insulated	Serrated Termination	16 AWG	22 AWG	Snap Spring	Crimp	0.991 in	0.105 in	0.14 in	0.164 in	Poly-Vinyl Chloride PVC	0.27 in	0.426 in
