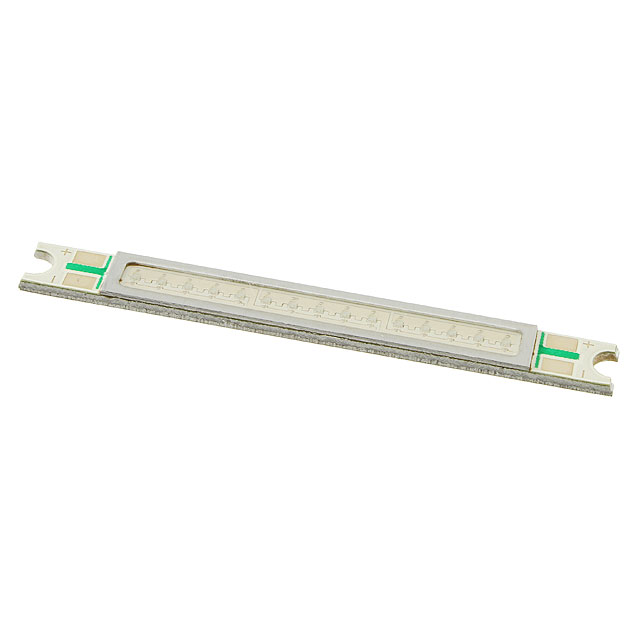

XZCB25X112S7W-A

Obsolete

SunLED

LED MOD BLUE LNR LGT STRIP

Search across all available documentation for this part.

Obsolete

SunLED

LED MOD BLUE LNR LGT STRIP

Technical Specifications

Parameters and characteristics for this part

Specification	XZCB25X112S7W-A

Color	Blue
Configuration	Linear Light Strip
Current - Max [Max]	700 mA
Height [z]	1.6 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	32.4 mm
Light Emitting Surface (LES) [y]	3 mm
Lumens/Watt @ Current - Test	6 lm/W
Luminous Flux @ Current/Temperature	41.7 lm
Size / Dimension [x]	48 mm
Size / Dimension [y]	5 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	10.3 V
Wavelength	460 nm

Part	Configuration	Lens Size [diameter]	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Color	Supplier Device Package	Millicandela Rating	Current - Test	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Package / Case	Package / Case	Mounting Type	Height (Max) [Max] [z]	Wavelength - Peak	Height [z]	Lens Type	Type	Wavelength	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Thermal Resistance of Package [diameter]	Size / Dimension [x]	Size / Dimension [y]
SunLED XZCB25X109FS	Standard	2.5 mm	Blue	3.5 V	Clear	Colorless	2-SMD	1295 mcd	150 mA	450 nm	3.5 mm	2.8 mm	120 °	1411	3528 Metric	Surface Mount	1.05 mm	445 nm
SunLED XZCB25X112S7W-A	Linear Light Strip		Blue	10.3 V							48 mm	5 mm	120 °						1.6 mm	Flat	LED Module	460 nm	32.4 mm	3 mm	6 lm/W	41.7 lm	700 mA
SunLED XZCB25X143S			Blue	3.5 V			SMD		150 mA		0.209 "	0.118 in	120 °	Nonstandard SMD		Surface Mount						460 nm			15 lm/W	8 lm	300 mA	0.04 "	1.02 mm	60 °C/W	5.3 mm	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - Blue Linear Light Strip
