Q-2I02P0005036i

Active

Amphenol Custom Cable

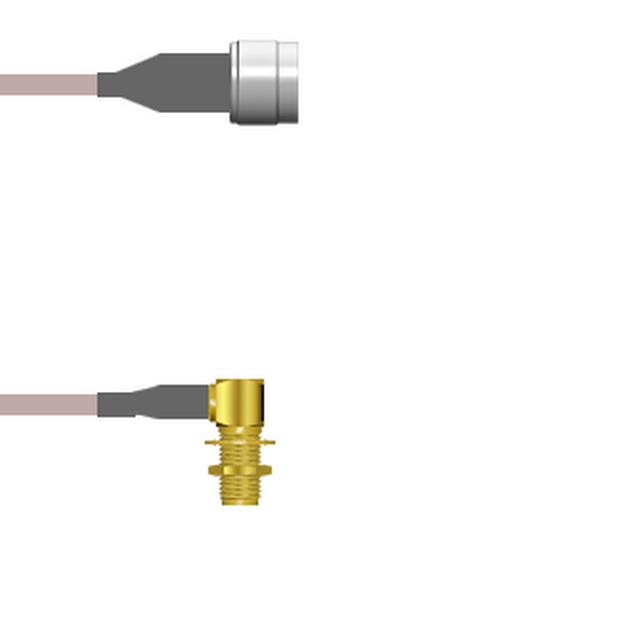

COAX CBL SMA TO N-TYPE 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I02P0005036i

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I02P0005036i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2I02P0 Series

Part	Overall Impedance	Length	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	1st Connector Mounting Feature	Style	Features	Cable Type	Color	1st Connector Mounting Type	1st Contact Gender	2nd Connector	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-2I02P00031.5M	50 Ohms	59.1 in	4.9 ft	1.5 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-174	Black	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0005108i	50 Ohms	108 in	9 ft	2.7 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-316	Copper	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0005002M	50 Ohms	78.7 in	6.6 ft	2 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-316	Copper	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0003084i	50 Ohms	84 in	7 ft	2.1 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-174	Black	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0005036i	50 Ohms	36 in		91.44 cm	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-316	Copper	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0005.25M	50 Ohms				Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-316	Copper	Panel Mount	Female	N-Type Plug	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2I02P0005003M	50 Ohms	118.1 in	9.8 '	3 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-316	Copper	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0003006i	50 Ohms	6 in		152.4 mm	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-174	Black	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P00032.5M	50 Ohms	98.4 in	8.2 '	2.5 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-174	Black	Panel Mount	Female	N-Type Plug	Male
Amphenol Custom Cable Q-2I02P0003108i	50 Ohms	108 in	9 ft	2.7 m	Free Hanging (In-Line)	11 GHz	Right Angle SMA Jack	Bulkhead - Front Side Nut	SMA to N-Type	Shielded	RG-174	Black	Panel Mount	Female	N-Type Plug	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 140.50
		25	$ 137.76
		50	$ 135.01
		100	$ 132.27
		250	$ 129.52

Description

General part information

Q-2I02P0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
