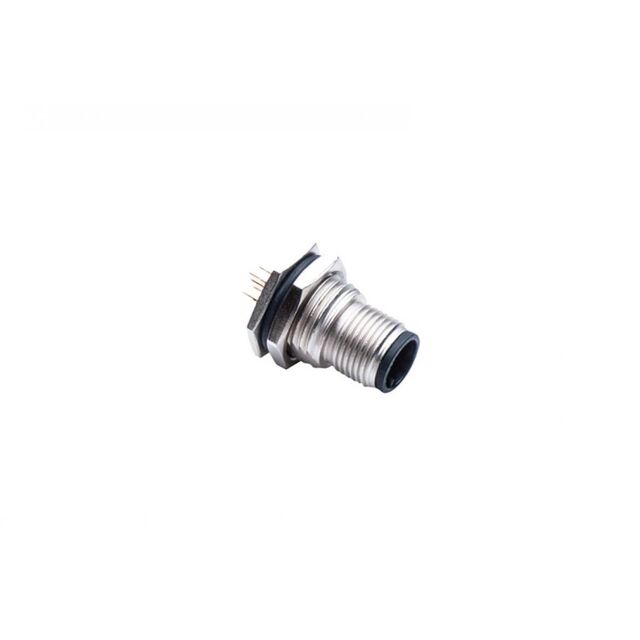

MSAS-10PMMP-SF8001

Active

Amphenol LTW

M12 PANEL PCB SHIELD CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M12 PANEL PCB SHIELD CONN

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-10PMMP-SF8001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Ground
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-10
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Color	Number of Positions	Current Rating (Amps)	Shell Finish	Contact Finish - Mating	Ingress Protection	Features	Termination	Shielding	Orientation	Contact Material	Voltage Rating	Shell Size - Insert	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Mounting Type	Primary Material	Shell Material
Amphenol LTW MSAS-10PMMP-SF8001	Silver	10	1.5 A	Nickel	Gold	IP68 IP69K	Ground	Solder	Shielded	A	Copper Alloy	30 VDC	M12-10	Polyamide (PA) Nylon Glass Filled	Male Pins Receptacle	-40 °C	105 ░C	Bulkhead - Front Side Nut	Panel Mount Through Hole	Metal	Zinc Alloy
Amphenol LTW MSAS-10PMMP-SF8002	Silver	10	1.5 A	Nickel	Gold	IP68 IP69K	Ground	Solder	Shielded	A	Copper Alloy	30 VDC	M12-10	Polyamide (PA) Nylon Glass Filled	Male Pins Receptacle	-40 °C	105 ░C	Bulkhead - Front Side Nut	Panel Mount Through Hole	Metal	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder
