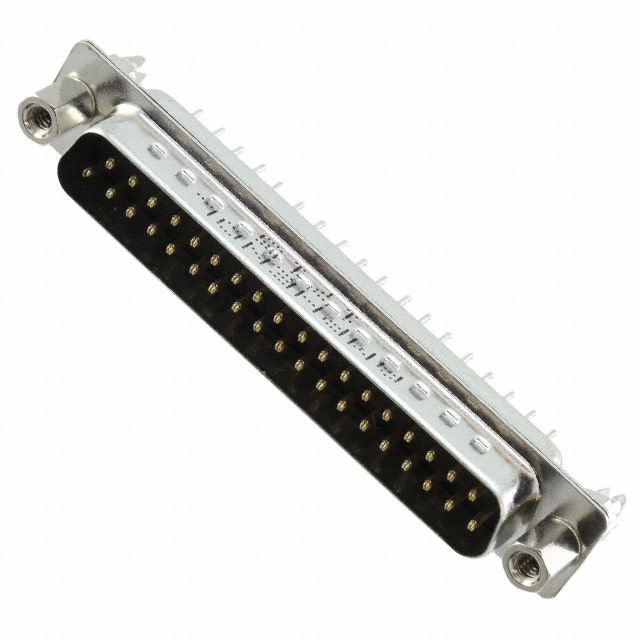

L717SDCH37POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDCH37POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDCH37POL2RM8

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

L717SDCH37 Series

Part	Contact Finish	Features	Connector Style	Contact Material	Contact Type	Shell Size, Connector Layout	Termination	Dielectric Material	Flange Feature	Color	Connector Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Form	Current Rating (Amps)	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDCH37POL2G	Gold	Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole	Flash	Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC
Amphenol ICC (Commercial Products) L717SDCH37POL2RM5C309	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole		Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCH37POL2RM8	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	Male Pins Plug	37	Through Hole	Flash	Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC
Amphenol ICC (Commercial Products) L717SDCH37P	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)		Thermoplastic Glass Filled	Cable Side	Black	Male Pins Plug	37	Free Hanging (In-Line)	Flash	Stamped	3 A	UL94 V-0	2	-55 °C	105 ░C	250 VDC			20 AWG
Amphenol ICC (Commercial Products) L717SDCH37POL2RM5G	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole	Flash	Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC
Amphenol ICC (Commercial Products) L717SDCH37POL2RM5GC309	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole		Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCH37POL2	Gold	Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole	Flash	Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC
Amphenol ICC (Commercial Products) L717SDCH37POL2C309	Gold	Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole		Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCH37POL2RM8C309	Gold	Board Lock Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	Male Pins Plug	37	Through Hole		Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCH37POL2GC309	Gold	Grounding Indents	D-Sub	Brass	Signal	4 (DC C)	Solder	Thermoplastic Glass Filled	4-40 Board Side	Black	Male Pins Plug	37	Through Hole		Stamped	3 A	UL94 V-0	2	-55 °C	125 °C	250 VDC	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.14
		10	$ 3.16
		25	$ 2.85
		40	$ 2.70
		80	$ 2.51
		230	$ 2.24
		440	$ 2.09
		945	$ 1.94
		2400	$ 1.77

Description

General part information

L717SDCH37 Series

37 Position D-Sub Plug, Male Pins Connector
