NXFT Series

Part	Beta (B25/100)	Length - Lead Wire	Mounting Type	B25/50	Package / Case	Resistance (Ohms)	Resistance Tolerance (%)	Power - Max	B Value (25/85)	B Value Tolerance	Operating Temperature (Max)	Operating Temperature (Min)
Murata Electronics NXFT15WF104FEAB035	4334 K	1.38 in	Free Hanging	4250 K	Bead	100 kOhm	1 %	3 mW	4311 K	1 %	125 °C	-40 °C
Murata Electronics NXFT15XM202GA1B130
Murata Electronics NXFT15WB473FA1B070	4131 K		Free Hanging	4050 K	Bead	47 kOhm	1 %	100 mW	4108 K	1 %	125 °C	-40 °C
Murata Electronics NXFT15WB473FA2B080	4131 K		Free Hanging	4050 K	Bead	47 kOhm	1 %	100 mW	4108 K	1 %	125 °C	-40 °C

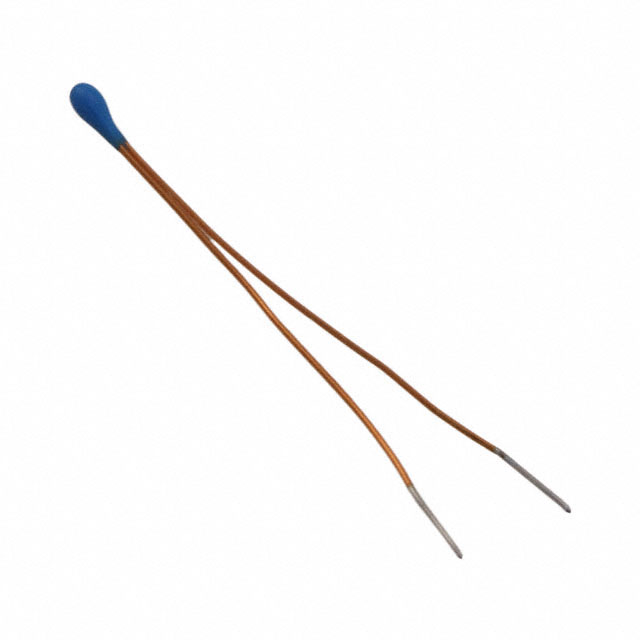

Murata Electronics NXFT15XV103FEAB050	3989 K	1.97 in	Free Hanging	3936 K	Bead	10 kOhm	1 %	3 mW	3977 K	1 %	125 °C	-40 °C
Murata Electronics NXFT15XH103FEAB030	3455 K	1.18 in	Free Hanging	3380 K	Bead	10 kOhm	1 %	3 mW	3434 K	1 %	125 °C	-40 °C
Murata Electronics NXFT15WB473FEAB045	4131 K	1.77 in	Free Hanging	4050 K	Bead	47 kOhm	1 %	3 mW	4108 K	1 %	125 °C	-40 °C
Murata Electronics NXFT15XM202GA2B080

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
