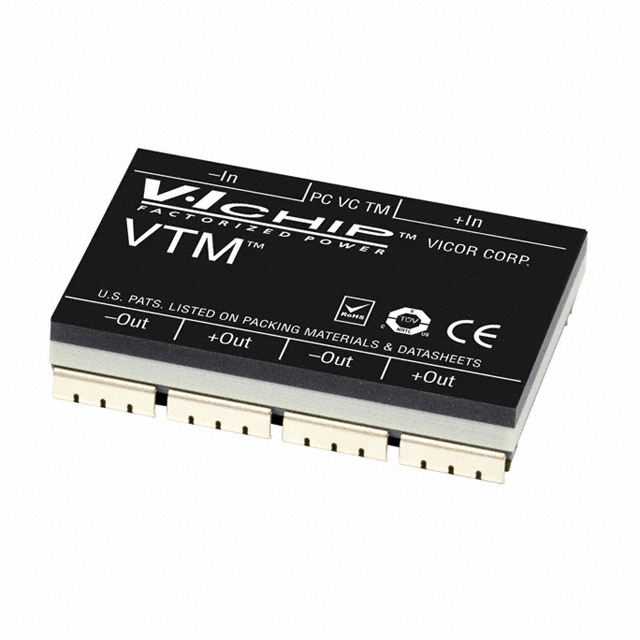

VTM48EF020M080A00

Obsolete

Vicor Corporation

DC DC CONVERTER 2V 160W

Search across all available documentation for this part.

Obsolete

Vicor Corporation

DC DC CONVERTER 2V 160W

Technical Specifications

Parameters and characteristics for this part

Specification	VTM48EF020M080A00

Applications	ITE (Commercial)
Current - Output (Max) [Max]	80 A
Efficiency	92.4 %
Features	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Module
Power (Watts)	160 W
Size / Dimension [x]	1.28 in
Size / Dimension [x]	32.5 mm
Size / Dimension [y]	22 mm
Size / Dimension [y]	0.87 in
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Voltage Transformation Module
Voltage - Input (Min) [Min]	26 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	2 V

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Isolation	Mounting Type	Package / Case	Type	Features	Applications	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Min) [Min]
Vicor Corporation VTM48EF020M080A00	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	1	2250 VDC	Surface Mount	Module	Voltage Transformation Module	OCP OTP OVP Remote On/Off SCP	ITE (Commercial)	92.4 %	-55 °C	125 °C	2 V	80 A	160 W	26 V
Vicor Corporation VTM48EF020T080A00	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	1	2250 VDC	Surface Mount	Module	Voltage Transformation Module	Remote On/Off	ITE (Commercial)	92.4 %	-40 °C	125 °C	2 V	80 A	160 W	26 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltage Transformation Module DC DC Converter 1 Output 2V 80A 26V - 55V Input
