833-023-542-602
ActiveEDAC Inc.

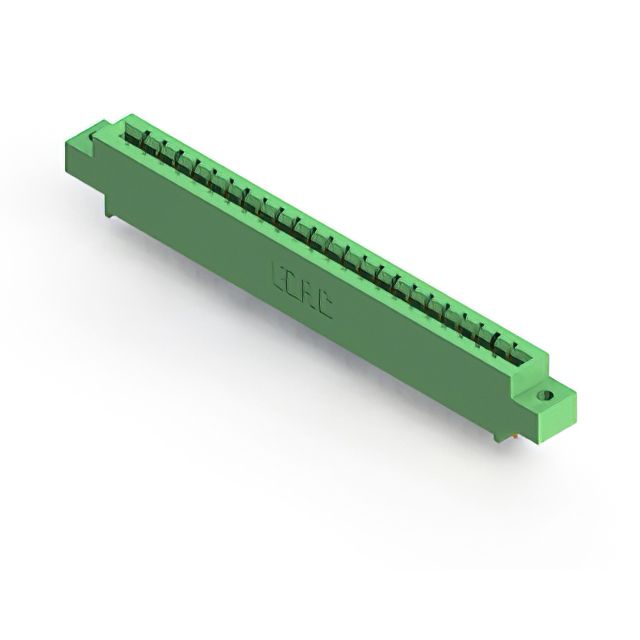

3.96MM STRAIGHT 23P -40℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-023-542-602
ActiveEDAC Inc.
3.96MM STRAIGHT 23P -40℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-023-542-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
833-023 Series
...
| Part | Number of Positions | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch [x] | Pitch [x] | Number of Rows | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Contact Type | Contact Material | Read Out | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Positions/Bay/Row [custom] | Gender | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 23 | Solder | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 23 | Solder | 125 °C | -40 °C | Through Hole Right Angle | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 23 | Solder | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 23 | Wire Wrap | 125 °C | -40 °C | Through Hole | 0.156 in | 3.96 mm | 1 | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | Copper Alloy | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 23 | Female | Gold | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
