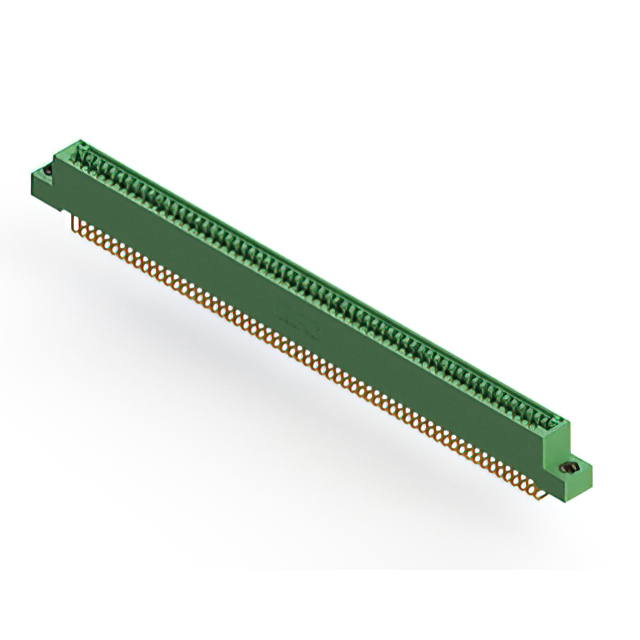

845-061-558-108
ActiveEDAC Inc.
2.54MM RIGHT-ANGLE 61P -40℃~+125℃ PUSH-PULL,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-061-558-108
ActiveEDAC Inc.
2.54MM RIGHT-ANGLE 61P -40℃~+125℃ PUSH-PULL,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-061-558-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 61 |
| Number of Positions/Bay/Row [custom] | 61 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-061 Series
...
| Part | Contact Finish | Pitch [x] | Pitch [x] | Termination | Termination Rows | Contact Material | Read Out | Gender | Material - Insulation | Flange Feature | Contact Type | Number of Positions/Bay/Row [custom] | Mounting Type | Color | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Wire Wrap | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Floating Bobbin Top Mount Opening | Cantilever | 61 | Through Hole Right Angle | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder Eyelet(s) | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Wire Wrap | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Floating Bobbin Top Mount Opening | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Cantilever | 61 | Through Hole Right Angle | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | Cantilever | 61 | Through Hole Right Angle | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Wire Wrap | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | Floating Bobbin Top Mount Opening | Cantilever | 61 | Through Hole | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Solder | 1 | Copper Alloy | Single | Female | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 61 | Through Hole Right Angle | Green | 61 | 125 °C | -40 °C | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-061 Series
61 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
