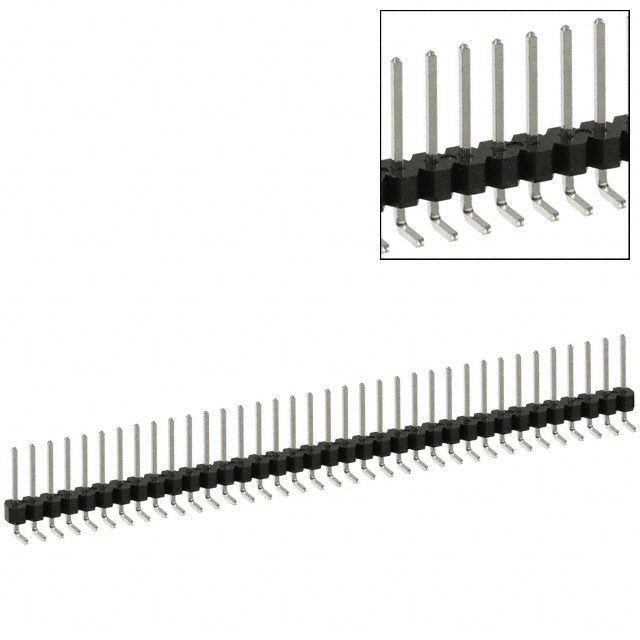

PEC36SGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 36POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC36SGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 36POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC36SGAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC36 Series

Part	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Number of Rows	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Contact Material	Insulation Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Style	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Mating
Sullins Connector Solutions PEC36DFDN	Tin	10.67 mm	0.42 in	All	2	Square	2.54 µm	100 µin	0.318 "	8.08 mm	Black	21.29 mm	0.838 in	Solder	2.54 mm	0.1 in	Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	72	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm
Sullins Connector Solutions PEC36DBAN	Tin			All	2	Square	2.54 µm	100 µin	0.23 in		Black			Solder	2.54 mm	0.1 in	Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole Right Angle	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	72	Board to Board Cable	UL94 V-0	0.24 in	6.1 mm	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC36DBBN	Tin	5.08 mm	0.2 in	All	2	Square	2.54 µm	100 µin	0.23 in		Black			Solder	2.54 mm	0.1 in	Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole Right Angle	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	72	Board to Board Cable	UL94 V-0	0.24 in	6.1 mm	5.84 mm
Sullins Connector Solutions PEC36SGAN	Tin			All	1	Square	2.54 µm	100 µin	0.318 "	8.08 mm	Black			Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole Right Angle	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.14 in	3.56 mm		2.54 mm	0.1 in
Sullins Connector Solutions PEC36SABN	Tin			All	1	Square	2.54 µm	100 µin	0.23 in		Black	14.22 mm	0.56 in	Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm	5.84 mm	5.84 mm	0.23 in
Sullins Connector Solutions PEC36DGBN	Tin	5.08 mm	0.2 in	All	2	Square	2.54 µm	100 µin	0.318 "	8.08 mm	Black			Solder	2.54 mm	0.1 in	Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole Right Angle	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	72	Board to Board Cable	UL94 V-0	0.24 in	6.1 mm
Sullins Connector Solutions PEC36SACN	Tin	8.13 mm	0.32 in	All	1	Square	2.54 µm	100 µin	0.23 in		Black	0.65 in		Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm	5.84 mm			16.51 mm
Sullins Connector Solutions PEC36SZAN	Tin	3.05 mm	0.12 in	All	1	Square	2.54 µm	100 µin			Black	8.64 mm	0.34 in	Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm	3.05 mm				0.12 in
Sullins Connector Solutions PEC36SAAN	Tin	3.05 mm	0.12 in	All	1	Square	2.54 µm	100 µin	0.23 in		Black	11.43 mm	0.45 "	Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm	5.84 mm
Sullins Connector Solutions PEC36SBAN	Tin			All	1	Square	2.54 µm	100 µin	0.23 in		Black			Solder			Breakaway Header	0.1 in	2.54 mm	Unshrouded	Male Pin	2.54 çm	100 çin	3 A	Through Hole Right Angle	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Push-Pull	125 °C	-65 ░C	36	Board to Board Cable	UL94 V-0	0.14 in	3.56 mm	5.84 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.98
		50	$ 1.77
		100	$ 1.46
		500	$ 1.23

Description

General part information

PEC36 Series

Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm)
