13180-7SG-321

Active

Conxall/Switchcraft

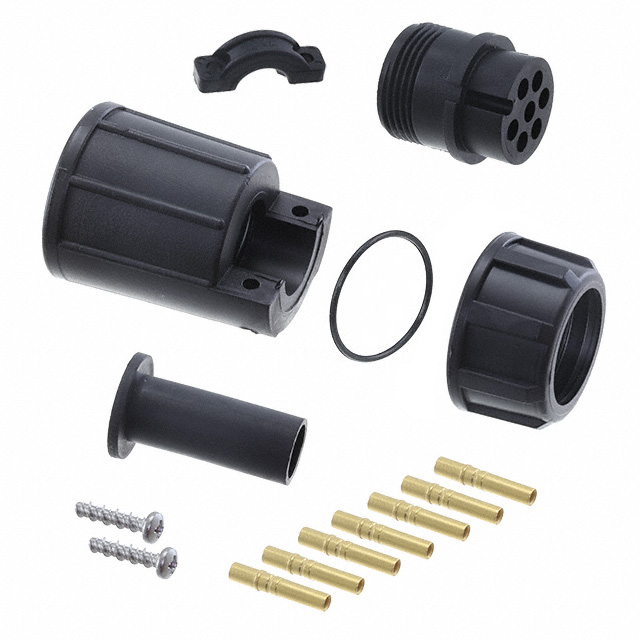

CONN PLUG FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG FMALE 7POS GOLD CRIMP

Part	Fastening Type	Number of Positions	Orientation	Contact Material	Primary Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shielding	Connector Type	Features	Ingress Protection	Termination	Voltage Rating	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 13180-7SG-321	Bayonet Lock	7	Keyed	Brass	Plastic	Gold	-40 °C	115 °C	Free Hanging (In-Line)	Nylon, Polyamide (PA)	0.21 in	5.33 mm	6.35 mm	0.25 in	Unshielded	Female Sockets, Plug	Backshell, Cable Clamp	Weathertight	Crimp	600 V	Black
Conxall/Switchcraft 13180-7SG-326	Bayonet Lock	7	Keyed	Brass	Plastic	Gold	-40 °C	115 °C	Free Hanging (In-Line)	Nylon, Polyamide (PA)					Unshielded	Female Sockets, Plug	Backshell, Cable Clamp	Weathertight	Crimp	600 V	Black	0.26 in	7.62 mm	0.3 in	6.6 mm
Conxall/Switchcraft 13180-7SG-331	Bayonet Lock	7	Keyed	Brass	Plastic	Gold	-40 °C	115 °C	Free Hanging (In-Line)	Nylon, Polyamide (PA)					Unshielded	Female Sockets, Plug	Backshell, Cable Clamp	Weathertight	Crimp	600 V	Black					9.65 mm	0.31 in, 0.38 in	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Crimp
