Q-2004E0003003M

Active

Amphenol Custom Cable

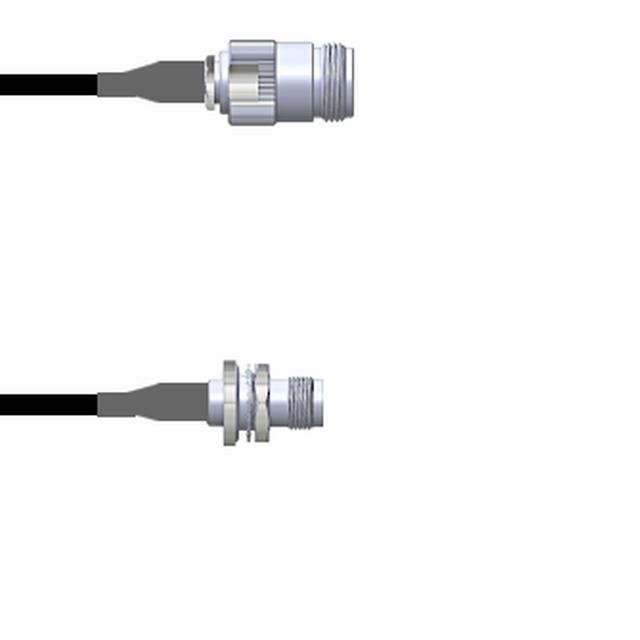

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2004E0003003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2004E0003003M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-2004E0 Series

Part	Features	Cable Type	2nd Connector Mounting Type	2nd Contact Gender	Length	Length	Overall Impedance	1st Connector Mounting Type	Color	1st Contact Gender	1st Connector	Frequency - Max [Max]	2nd Connector Mounting Feature	2nd Connector	Length
Amphenol Custom Cable Q-2004E0003024i	Shielded	RG-174	Panel Mount	Female	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Black	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack
Amphenol Custom Cable Q-2004E0003036i	Shielded	RG-174	Panel Mount	Female	36 in	91.44 cm	50 Ohms	Free Hanging (In-Line)	Black	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack
Amphenol Custom Cable Q-2004E0005001M	Shielded	RG-316	Panel Mount	Female	39.4 in	1 m	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	3.3 ft
Amphenol Custom Cable Q-2004E0003003M	Shielded	RG-174	Panel Mount	Female	118.1 in	3 m	50 Ohms	Free Hanging (In-Line)	Black	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	9.8 '
Amphenol Custom Cable Q-2004E0005072i	Shielded	RG-316	Panel Mount	Female	72 in	1.8 m	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	6 ft
Amphenol Custom Cable Q-2004E0005012i	Shielded	RG-316	Panel Mount	Female	12 "	304.8 mm	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack
Amphenol Custom Cable Q-2004E0005060i	Shielded	RG-316	Panel Mount	Female	5 '	1.5 m	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	5 ft
Amphenol Custom Cable Q-2004E0005048i	Shielded	RG-316	Panel Mount	Female	48 in	1200 mm	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	4 ft
Amphenol Custom Cable Q-2004E0005003M	Shielded	RG-316	Panel Mount	Female	118.1 in	3 m	50 Ohms	Free Hanging (In-Line)	Copper	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack	9.8 '
Amphenol Custom Cable Q-2004E0003006i	Shielded	RG-174	Panel Mount	Female	6 in	152.4 mm	50 Ohms	Free Hanging (In-Line)	Black	Female	N-Type Jack	11 GHz	Bulkhead - Front Side Nut	TNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.03
		25	$ 57.78
		50	$ 53.53
		100	$ 49.89
		250	$ 46.85

Description

General part information

Q-2004E0 Series

Cable Assembly Coaxial N-Type to TNC RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
