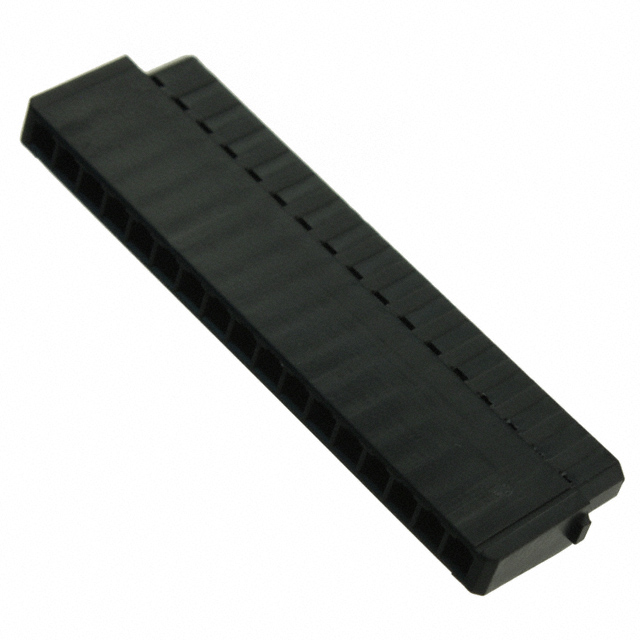

M80-6901798
ObsoleteHarwin Inc.
CONN RCPT HSG 17POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M80-6901798
ObsoleteHarwin Inc.
CONN RCPT HSG 17POS 2.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-6901798 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
M80-690 Series
| Part | Note | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Number of Rows | Fastening Type | Contact Type | Connector Type | Contact Termination | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Contacts Not Included | Free Hanging (In-Line) | -55 °C | 125 °C | Glass Filled Nylon 4/6 Polyamide (PA46) | 1 | Latch Lock | Female Socket | Receptacle | Crimp | Black | 0.079 in | 2 mm |
Harwin Inc. | Contacts Not Included | Free Hanging (In-Line) | -55 °C | 125 °C | Glass Filled Nylon 4/6 Polyamide (PA46) | 1 | Latch Lock | Female Socket | Receptacle | Crimp | Black | 0.079 in | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M80-690 Series
17 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
