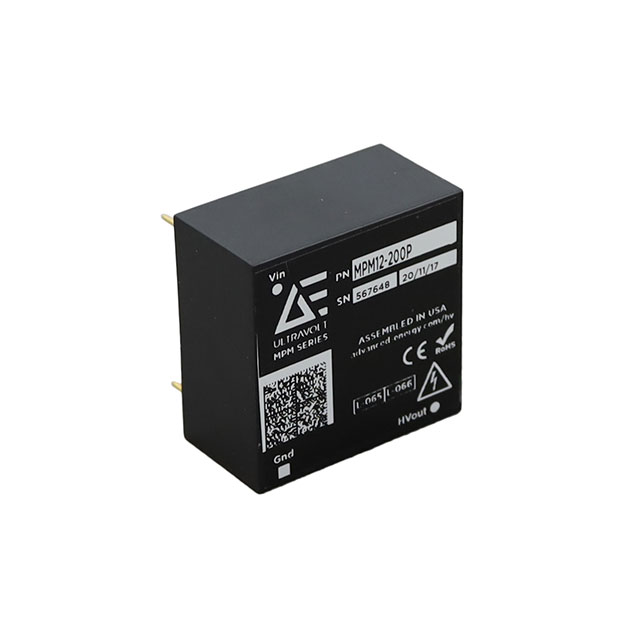

MPM12-200P

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 34-200V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPM12-200P

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 34-200V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPM12-200P

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	7.5 mA
Features	Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Package / Case	4-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	1.5 ", 38.1 mm
Size / Dimension [y]	1.5 in, 38.1 mm
Size / Dimension [z]	0.79 ", 20.1 mm
Type	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Input (Min) [Min]	2 V

MPM12 Series

Part	Power (Watts)	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Approval Agency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
ULTRAVOLT / Advanced Energy MPM12-100PI	15 W	ITE (Commercial)	12 V	15 mA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	1.5 in 38.1 mm	1.5 " 38.1 mm	0.79 " 20.1 mm	1	CE
ULTRAVOLT / Advanced Energy MPM12-100N	15 W	ITE (Commercial)	12 V	15 mA	2 V	Active Low Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	1.5 in 38.1 mm	1.5 " 38.1 mm	0.79 " 20.1 mm	1	CE	-100 V	-17 V
ULTRAVOLT / Advanced Energy MPM12-200P	15 W	ITE (Commercial)	12 V	7.5 mA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	1.5 in 38.1 mm	1.5 " 38.1 mm	0.79 " 20.1 mm	1	CE
ULTRAVOLT / Advanced Energy MPM12-300NSI	15 W	ITE (Commercial)	12 V	5 mA	2 V	Active Low Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	39.4 mm	39.4 mm	21.6 mm	1	CE	-300 V	-50 V	1.55 in	1.55 "	0.85 "
ULTRAVOLT / Advanced Energy MPM12-3KPS	15 W	ITE (Commercial)	12 V	500 µA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	39.4 mm	39.4 mm	21.6 mm	1	CE	3000 V	500 V	1.55 in	1.55 "	0.85 "
ULTRAVOLT / Advanced Energy MPM12-200PS	15 W	ITE (Commercial)	12 V	7.5 mA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	39.4 mm	39.4 mm	21.6 mm	1	CE			1.55 in	1.55 "	0.85 "
ULTRAVOLT / Advanced Energy MPM12-2KPSI	15 W	ITE (Commercial)	12 V	750 µA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	39.4 mm	39.4 mm	21.6 mm	1	CE	2000 V	334 V	1.55 in	1.55 "	0.85 "
ULTRAVOLT / Advanced Energy MPM12-3KPI	15 W	ITE (Commercial)	12 V	500 µA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	1.5 in 38.1 mm	1.5 " 38.1 mm	0.79 " 20.1 mm	1	CE	3000 V	500 V
ULTRAVOLT / Advanced Energy MPM12-200PSI	15 W	ITE (Commercial)	12 V	7.5 mA	2 V	Active High Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	39.4 mm	39.4 mm	21.6 mm	1	CE			1.55 in	1.55 "	0.85 "
ULTRAVOLT / Advanced Energy MPM12-300N	15 W	ITE (Commercial)	12 V	5 mA	2 V	Active Low Enable	4-DIP Module	-10 °C	60 °C	High Voltage - Isolated Module	Through Hole	Adjustable Output	1.5 in 38.1 mm	1.5 " 38.1 mm	0.79 " 20.1 mm	1	CE	-300 V	-50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 212.29

Description

General part information

MPM12 Series

High Voltage - Isolated Module DC DC Converter 1 Output 34 ~ 200V 7.5mA 2V - 12V Input
