6674S-1-103
ActiveBourns Inc.

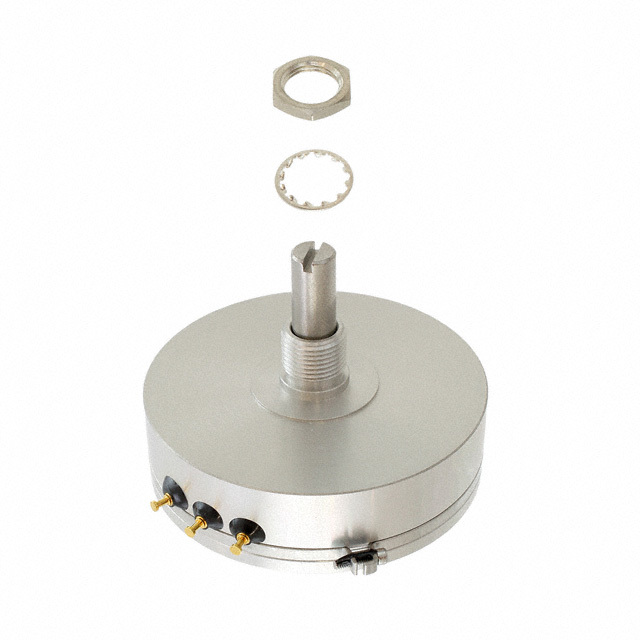

POT 10K OHM 2W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6674S-1-103 |
|---|---|
| Actuator Diameter [diameter] | 6.34 mm |
| Actuator Diameter [diameter] | 0.2497 in |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | Continuous |
| Size - Body [diameter] | 2 in |
| Size - Body [diameter] | 50.8 mm |
| Taper | Linear |
| Temperature Coefficient | 5 % |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 205.60 | |
Description
General part information
6674S Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Turret
