1241598-1
ActiveTE Connectivity AMP Connectors

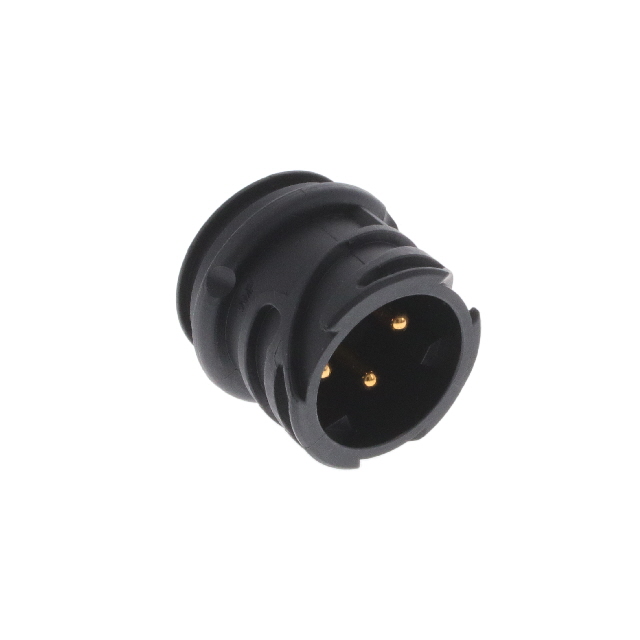

CONN RCPT MALE 4POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1241598-1
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 4POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241598-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.57 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.73 | |||
| 50 | $ 4.60 | |||
| 100 | $ 4.50 | |||
1241598 Series
CONN RCPT MALE 4POS GOLD
| Part | Number of Positions | Ingress Protection | Primary Material | Connector Type | Material Flammability Rating | Mounting Type | Orientation | Contact Material | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish - Mating | Insert Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241598-1 | 4 | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Plastic | Male Pins, Receptacle | UL94 HB | Free Hanging (In-Line) | 1 | Copper Zinc | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 120 °C | Black | Gold | Polybutylene Terephthalate (PBT), Glass Filled | Bayonet Lock |
Description
General part information
1241598 Series
4 Position Circular Connector Receptacle, Male Pins
