Specification	CQB100W-110S48

Applications	Railway, ITE (Commercial)
Approval Agency	CE, cURus, CB, UKCA
Control Features	Active High, Enable
Current - Output (Max)	2.1 A
Efficiency	90 %
Features	Remote Sense, Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Quarter Brick
Package Name	Quarter Brick
Power (Watts)	101 W
Size / Dimension Height	0.5 in
Size / Dimension Length	2.28 in
Size / Dimension Width	1.45 in
Standard Number	62368-1, 60950-1
Type	Isolated Module
Voltage - Input (Max)	160 VDC
Voltage - Input (Min)	43 V
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

CQB100W-110S Series

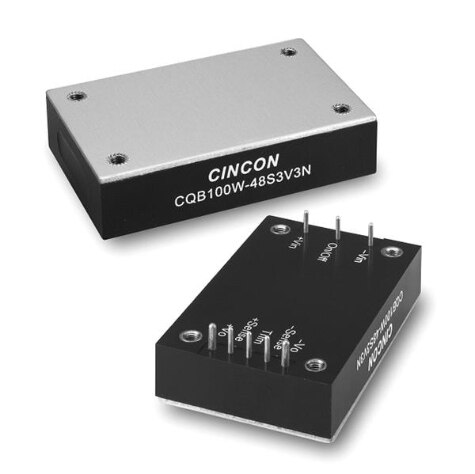

Isolated DC/DC Converters - Through Hole 100W 43-160Vin 48V 2.1A NL Cov

Part	Current - Output (Max)	Applications	Voltage - Isolation	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Power (Watts)	Mounting Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Efficiency	Type	Number of Outputs	Voltage - Input (Min)	Voltage - Input (Max)	Standard Number	Package Name	Voltage - Output 1	Control Features
Cincon Electronics Co. LTD CQB100W-24S12N	8.3 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86.5 %	Isolated Module	1	9 V	36 V	60950-1	Module	12 V	Active Low Enable
Cincon Electronics Co. LTD CQB100W-24S3V3N	30 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	99 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86 %	Isolated Module	1	9 V	36 V	60950-1	Module	3.3 V	Active Low Enable
Cincon Electronics Co. LTD CQB100W-48S05N	20 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	88 %	Isolated Module	1	18 V	75 V	60950-1	Module	5 V	Active Low Enable
Cincon Electronics Co. LTD CQB100W-24S24	4.17 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	87 %	Isolated Module	1	9 V	36 V	60950-1	Module	24 V	Active High Enable
Cincon Electronics Co. LTD CQB100W-24S12	8.3 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86.5 %	Isolated Module	1	9 V	36 V	60950-1	Module	12 V	Active High Enable
Cincon Electronics Co. LTD CQB100W-24S05N	20 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86.5 %	Isolated Module	1	9 V	36 V	60950-1	Module	5 V	Active Low Enable
Cincon Electronics Co. LTD CQB100W-24S15	6.7 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	101 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86.5 %	Isolated Module	1	9 V	36 V	60950-1	Module	15 V	Active High Enable
Cincon Electronics Co. LTD CQB100W-48S15	6.7 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	101 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	88 %	Isolated Module	1	18 V	75 V	60950-1	Module	15 V	Active High Enable
Cincon Electronics Co. LTD CQB100W-48S12N	8.3 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	88 %	Isolated Module	1	18 V	75 V	60950-1	Module	12 V	Active Low Enable
Cincon Electronics Co. LTD CQB100W-24S05	20 A	ITE (Commercial)	1500 Vrns	1.45 in	0.5 in	2.28 in	100 W	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Module	86.5 %	Isolated Module	1	9 V	36 V	60950-1	Module	5 V	Active High Enable
