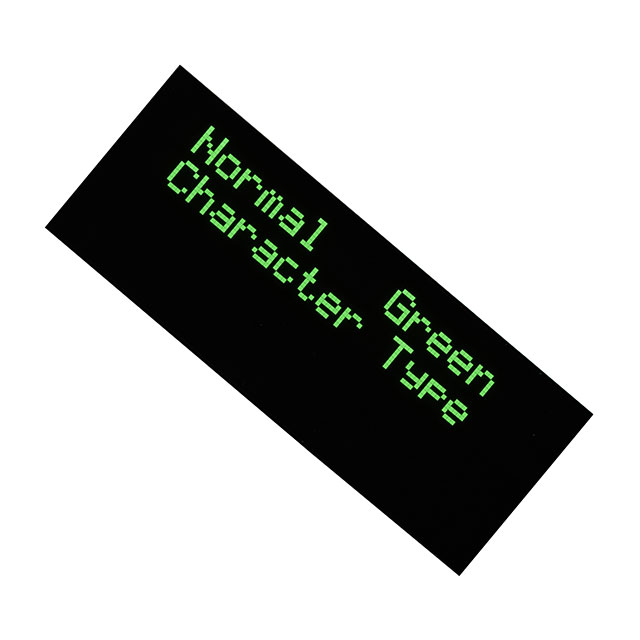

LOD-H02004DP-G

Active

Lumex Opto/Components Inc.

OLED MODULE 80DIG 20 X 4 PASSIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OLED MODULE 80DIG 20 X 4 PASSIVE

Technical Specifications

Parameters and characteristics for this part

OLED MODULE 80DIG 20 X 4 PASSIVE

Part	Text Color	Display Format [y]	Display Format [x]	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Character Format [y]	Character Format [x]	Display Type	Background Color	Interface	Viewing Area [x]	Viewing Area [y]	Character Size [y]	Character Size [z]	Display Mode	Dot Size [y]	Dot Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]
Lumex Opto/Components Inc. LOD-H02004DP-G	Green	4	20	80	-40 °C	80 C	8 Dots	5 Dots	OLED	Black	Parallel, 8-Bit	72.42 mm	22.82 mm	2.97 mm	4.77 mm	Passive	0.57 mm	0.57 mm	2.4 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit 98.00mm x 60.00mm x 2.20mm
