Q-0D01N0003002M

Active

Amphenol Custom Cable

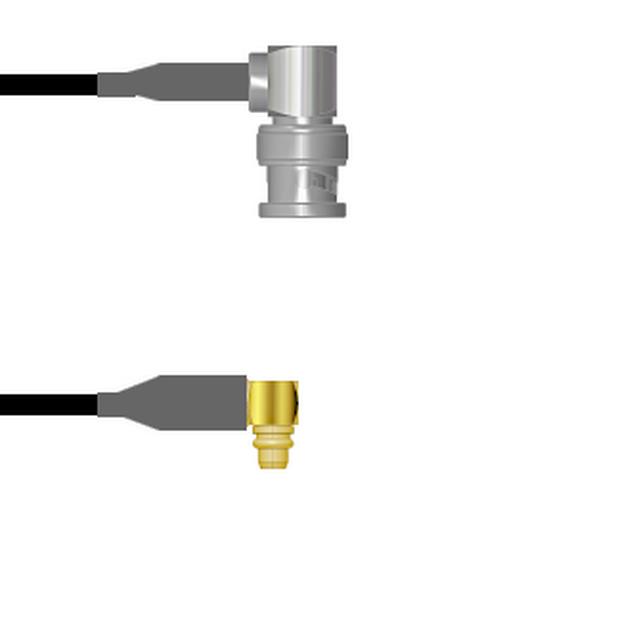

CBL ASSY BNC-MMCX PLUG-PLUG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D01N0003002M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX PLUG-PLUG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D01N0003002M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0D01N0 Series

Part	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Connector	Features	Cable Type	Style	1st Contact Gender	2nd Connector	Length	Length	Frequency - Max [Max]	Color	Length
Amphenol Custom Cable Q-0D01N0005006i	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-316	BNC to MMCX	Male	MMCX Plug Right Angle	152.4 mm	6 in	4 GHz	Copper
Amphenol Custom Cable Q-0D01N0003003i	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-174	BNC to MMCX	Male	MMCX Plug Right Angle	76.2 mm	3 in	4 GHz	Black
Amphenol Custom Cable Q-0D01N0005003i	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-316	BNC to MMCX	Male	MMCX Plug Right Angle	76.2 mm	3 in	4 GHz	Copper
Amphenol Custom Cable Q-0D01N0003.75M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-174	BNC to MMCX	Male	MMCX Plug Right Angle	750 mm	29.53 "	4 GHz	Black
Amphenol Custom Cable Q-0D01N00030.5M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-174	BNC to MMCX	Male	MMCX Plug Right Angle	50 cm	19.69 "	4 GHz	Black
Amphenol Custom Cable Q-0D01N0003002M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-174	BNC to MMCX	Male	MMCX Plug Right Angle	2 m	78.7 in	4 GHz	Black	6.6 ft
Amphenol Custom Cable Q-0D01N00031.5M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-174	BNC to MMCX	Male	MMCX Plug Right Angle	1.5 m	59.1 in	4 GHz	Black	4.9 ft
Amphenol Custom Cable Q-0D01N0005002M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-316	BNC to MMCX	Male	MMCX Plug Right Angle	2 m	78.7 in	4 GHz	Copper	6.6 ft
Amphenol Custom Cable Q-0D01N0005060i	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-316	BNC to MMCX	Male	MMCX Plug Right Angle	1.5 m	5 '	4 GHz	Copper	5 ft
Amphenol Custom Cable Q-0D01N0005108i	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	BNC Plug Right Angle	Shielded	RG-316	BNC to MMCX	Male	MMCX Plug Right Angle	2.7 m	108 in	4 GHz	Copper	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.02
		25	$ 74.51
		50	$ 69.01
		100	$ 64.29
		250	$ 60.35

Description

General part information

Q-0D01N0 Series

Cable Assembly Coaxial BNC to MMCX RG-174 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
