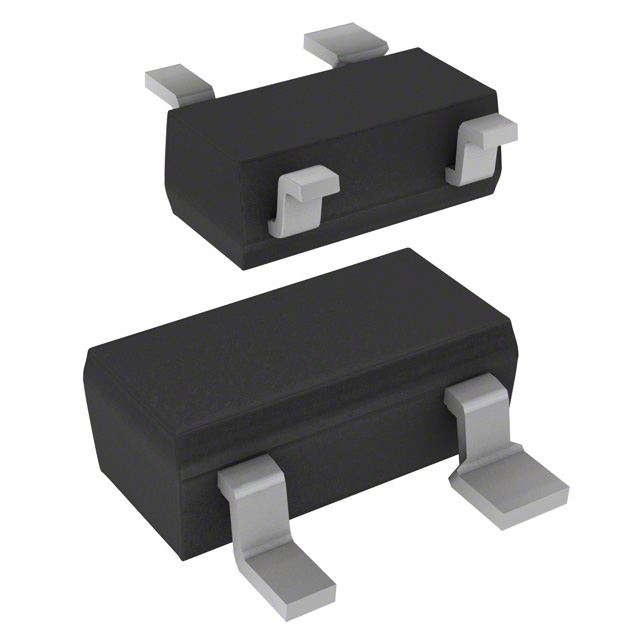

1SS272TE85LF

Active

Toshiba Semiconductor and Storage

DIODE ARRAY GP 80V 100MA SC61B

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

DIODE ARRAY GP 80V 100MA SC61B

Technical Specifications

Parameters and characteristics for this part

Specification	1SS272TE85LF

Current - Average Rectified (Io) (per Diode)	100 mA
Current - Reverse Leakage @ Vr	500 nA
Diode Configuration	2 Independent
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SC-61AA
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SC-61B
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V

DIODE ARRAY GP 80V 100MA SC61B

Part	Package / Case	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Diode Configuration	Supplier Device Package	Current - Reverse Leakage @ Vr	Speed	Speed	Reverse Recovery Time (trr)	Operating Temperature - Junction	Current - Average Rectified (Io) (per Diode)
Toshiba Semiconductor and Storage 1SS272TE85LF	SC-61AA	Surface Mount	80 V	Standard	2 Independent	SC-61B	500 nA	Any Speed	200 mA	4 ns	125 °C	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 2 Independent 80 V 100mA Surface Mount SC-61AA
