BM4515-04W-B49-L00

Obsolete

NMB TECHNOLOGIES

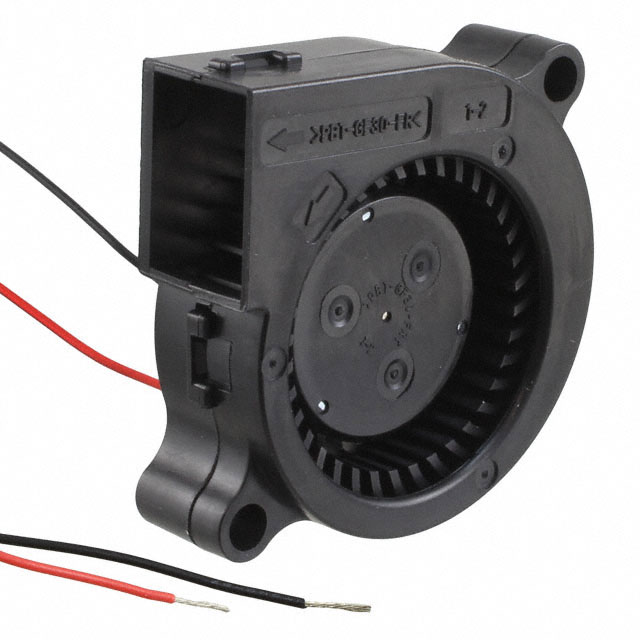

FAN BLOWER 44X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog BM Series Part Numbering Guide +2

BM4515-04W-B49-L00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 44X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog BM Series Part Numbering Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM4515-04W-B49-L00

Air Flow	0.084 m³/min
Air Flow	3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Blower
Features	Locked Rotor Sensor
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.68 W
RPM	6500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	44 mm
Size / Dimension [y]	45 mm
Static Pressure	159.9 Pa
Static Pressure	0.642 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.055 lb
Weight	24.95 g
Width [x]	15 mm

BM4515 Series

Part	Fan Type	Bearing Type	Termination	Approval Agency	Lifetime @ Temp.	Current Rating (Amps)	Static Pressure	Static Pressure	Voltage - Rated	Material - Blade	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Voltage Range [Min]	Voltage Range [Max]	Width [x]	RPM	Weight	Weight	Air Flow	Air Flow	Material - Frame	Power (Watts)	Features
NMB TECHNOLOGIES BM4515-04W-B50-L00	Blower	Ball	2 Wire Leads	CE CSA UL VDE	50000 Hrs	0.19 A	200 Pa	0.803 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	60 °C	60 °C	43 dB	10.2 VDC	13.8 VDC	15 mm	7500 RPM	0.055 lb	24.95 g	0.098 mł/min	3.5 CFM	Plastic	2.28 W
NMB TECHNOLOGIES BM4515-04W-B49-L00	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	140 mA	159.9 Pa	0.642 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	70 °C	70 °C	39 dB(A)	10.2 VDC	13.8 VDC	15 mm	6500 RPM	0.055 lb	24.95 g	0.084 m³/min	3 CFM	Plastic	1.68 W	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B49-L50	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	140 mA	159.9 Pa	0.642 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	70 °C	70 °C	39 dB(A)	10.2 VDC	13.8 VDC	15 mm	6500 RPM	0.055 lb	24.95 g	0.084 m³/min	3 CFM	Plastic	1.68 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BM4515-04W-B30-L00	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	0.09 A	100 Pa	0.401 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	70 °C	70 °C	35 dB	10.2 VDC	13.8 VDC	15 mm	5500 RPM	0.055 lb	24.95 g	0.073 mł/min	2.6 CFM	Plastic	1.08 W	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B59-L50	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	0.19 A	200 Pa	0.803 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	60 °C	60 °C	43 dB	10.2 VDC	13.8 VDC	15 mm	7500 RPM	0.055 lb	24.95 g	0.098 mł/min	3.5 CFM	Plastic	2.28 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BM4515-04W-B59-L00	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	0.19 A	200 Pa	0.803 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	60 °C	60 °C	43 dB	10.2 VDC	13.8 VDC	15 mm	7500 RPM	0.055 lb	24.95 g	0.098 mł/min	3.5 CFM	Plastic	2.28 W	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B39-L50	Blower	Ball	3 Wire Leads	CE CSA UL VDE	50000 Hrs	0.09 A	100 Pa	0.401 in H2O	12 VDC	Plastic	45 mm	Rectangular/Rounded	44 mm	-10 °C	-10 °C	70 °C	70 °C	35 dB	10.2 VDC	13.8 VDC	15 mm	5500 RPM	0.055 lb	24.95 g	0.073 mł/min	2.6 CFM	Plastic	1.08 W	Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BM4515 Series

Fan Blower 12VDC Rectangular/Rounded - 44mm L x 45mm H Ball 3.0 CFM (0.084m³/min) 3 Wire Leads
