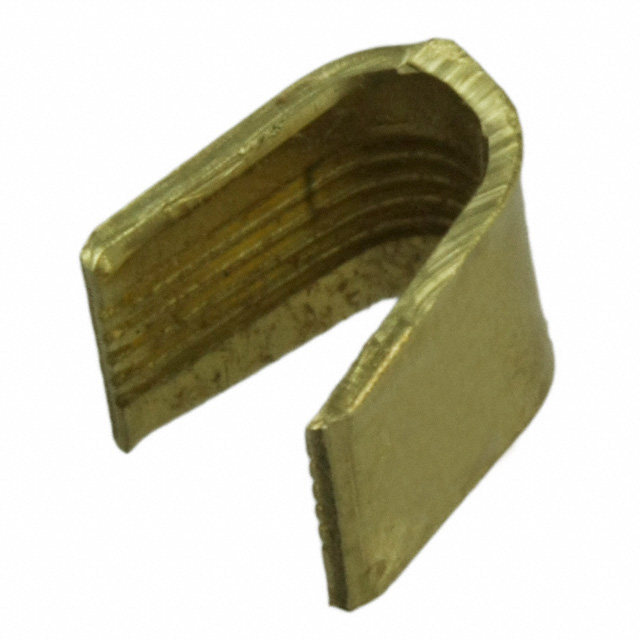

41766
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 3000-7000CMA CRIMP
41766
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 3000-7000CMA CRIMP
Description
General part information
4176 Series
Thru Splice, 15.5 – 12 AWG, 1.54 – 3.46 mm² Wire, 3 Splice Capacity, Serrated, 3000 – 7000 CMA, Brass, 5 Serration, 5.72 mm [.225 in] Length, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 41766 |
|---|---|
| Features | Serrated Mating Area |
| Style | Thru Type |
| Terminal Type | Splice |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 7000 CMA |
| Wire Gauge (CMA) (Min) | 3000 CMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
