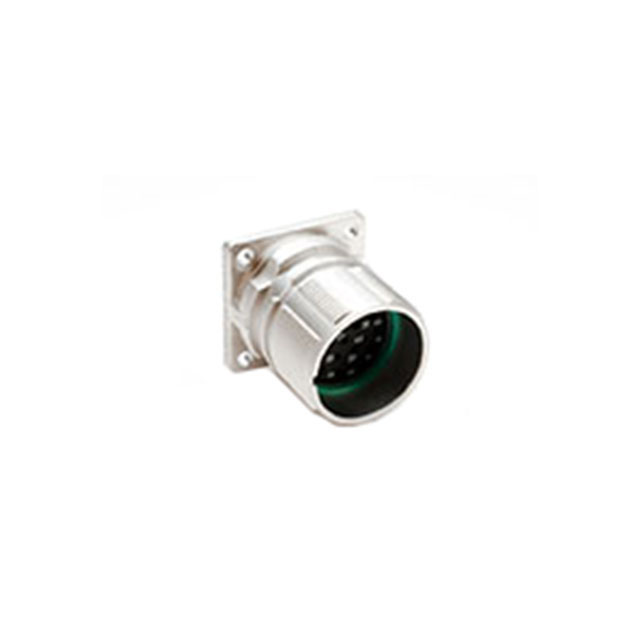

Specification	MA2LAE1700

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	17
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA2LAE Series

Part	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Termination	Shell Material	Shell Size - Insert	Color	Connector Type	Current Rating	Number of Positions	Mounting Type	Contact Finish - Mating	Voltage Rating	Fastening Type	Mounting Feature	Orientation	Type	Contact Shape	Housing Color	Insert Material	Material Flammability Rating	Contact Type	Contact Size	Note	Contact Material	Applications	Voltage Rating (Type)
McGill Microwave Systems MA2LAE1200-KIT	Shielded	Dust Tight Waterproof	IP67	Metal	-20 °C	130 °C	Nickel	Crimp	Zinc Die Cast	M23-12	Silver	Male Pins Receptacle	10 A	12	Panel Mount	Gold	160 V	Threaded	Flange	N (Normal)
McGill Microwave Systems MA2LAE1700	Shielded	Dust Tight Waterproof	IP67		-20 °C	130 °C	Nickel		Zinc Die Cast	M23-17		Receptacle Housing		17	Panel Mount			Push-Twist	Flange	N (Normal)	For Female Sockets or Male Pins	Circular	Silver	Nylon 6/6 PA66 Polyamide	UL94 V-0	Crimp	1 mm	Contacts Not Included
McGill Microwave Systems MA2LAE1600S-KIT	Shielded	Dust Tight Waterproof	IP67	Metal	-20 °C	130 °C	Nickel	Crimp	Zinc Die Cast	M23-16	Silver	Female Sockets Receptacle	9 A	16	Panel Mount	Gold	125 V	Push-Twist	Flange	E				Nylon 6/6 PA66 Polyamide	UL94 V-0				Copper Alloy	Communication Systems Industrial Medical	DC
McGill Microwave Systems MA2LAE1700-KIT	Shielded	Dust Tight Waterproof	IP67	Metal	-20 °C	130 °C	Nickel	Crimp	Zinc Die Cast	M23-17	Silver	Male Pins Receptacle	9 A	17	Panel Mount	Gold	125 V	Threaded	Flange	N (Normal)											DC
McGill Microwave Systems MA2LAE1700S-KIT	Shielded	Dust Tight Waterproof	IP67	Metal	-20 °C	130 °C	Nickel	Crimp	Zinc Die Cast	M23-17	Silver	Female Sockets Receptacle	9 A	17	Panel Mount	Gold	125 V	Threaded	Flange	N (Normal)											DC
