TC399XX256F300SBDLXUMA2

Active

Infineon Technologies

IC MCU 32BIT 16MB FLASH 516LFBGA

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BIT 16MB FLASH 516LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	TC399XX256F300SBDLXUMA2

Connectivity	Ethernet, ASC, QSPI, LINbus, SENT, I2C, CANbus, MSC, FlexRay, PSI5, HSSL
Core Size	32 Bit, 10 Core
EEPROM Size	1 M
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

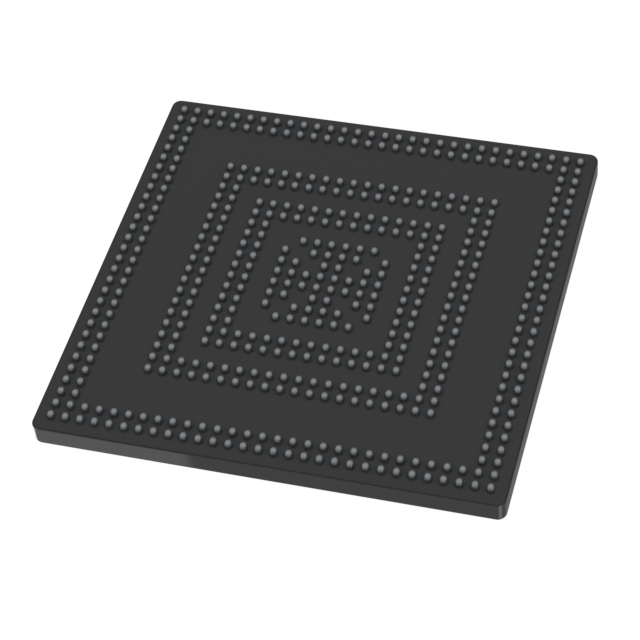

Package / Case	516-LFBGA
Peripherals	LVDS, WDT, DMA, PWM
Program Memory Size	16 MB
Program Memory Type	FLASH
RAM Size	2.47 M
Speed	300 MHz
Supplier Device Package	PG-LFBGA-516-10
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.97 V

Part	Program Memory Size	Connectivity	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Core Size	Speed	RAM Size	Oscillator Type	Mounting Type	Program Memory Type	Supplier Device Package	Package / Case	EEPROM Size	Voltage - Supply (Vcc/Vdd)	Core Size [custom]	Core Size [custom]
Infineon Technologies TC399XX256F300SBDKXUMA2	16 MB	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI5 QSPI SENT	DMA LVDS PWM WDT	5.5 V	2.97 V	-40 °C	125 °C	10 Core 32 Bit	300 MHz	2.47 M	Internal	Surface Mount	FLASH	PG-LFBGA-516-10	516-LFBGA	1 M
Infineon Technologies TC399XX256F300SBDLXUMA2	16 MB	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI5 QSPI SENT	DMA LVDS PWM WDT	5.5 V	2.97 V	-40 °C	150 °C	10 Core 32 Bit	300 MHz	2.47 M	Internal	Surface Mount	FLASH	PG-LFBGA-516-10	516-LFBGA	1 M
Infineon Technologies TC399XX256F300SBCLXUMA1	16 MB	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI QSPI SENT	DMA I2S PWM WDT			-40 °C	150 °C		300 MHz	6.75 M	Internal	Surface Mount	FLASH	PG-LFBGA-516-10	516-LFBGA		3.3 V 5 V	32-Bit	6-Core

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 65.81

General part information

TriCore™ AURIX™ Microcontroller IC 32-Bit 10-Core 300MHz 16MB (16M x 8) FLASH PG-LFBGA-516-10
