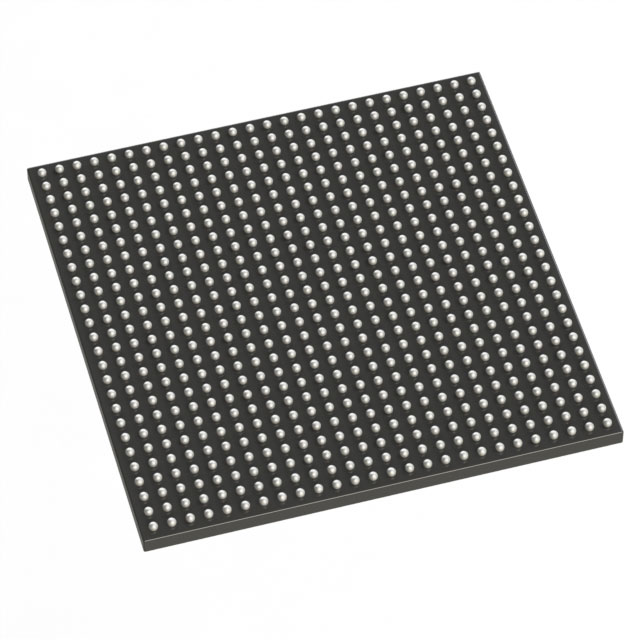

EPM7256BUC169-7

Obsolete

Altera

IC CPLD 256MC 7.5NS 169UBGA

Deep-Dive with AI

Search across all available documentation for this part.

Documents169-UBGA Pkg Info Datasheet

EPM7256BUC169-7

Obsolete

Altera

IC CPLD 256MC 7.5NS 169UBGA

Deep-Dive with AI

Documents169-UBGA Pkg Info Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPM7256BUC169-7

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of Gates	5000
Number of I/O	141
Number of Logic Elements/Blocks	16
Number of Macrocells	256
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	169-LFBGA
Programmable Type	In System Programmable
Supplier Device Package	169-UBGA (11x11)
Voltage Supply - Internal [Max]	2.625 V
Voltage Supply - Internal [Min]	2.375 V

EPM7256 Series

Part	Mounting Type	Number of Logic Elements/Blocks	Number of Gates	Number of Macrocells	Number of I/O	Supplier Device Package	Package / Case	Voltage Supply - Internal [Max]	Voltage Supply - Internal [Min]	Programmable Type	Delay Time tpd(1) Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Altera EPM7256BTC100-5	Surface Mount	16	5000	256	84 I/O	100-TQFP (14x14)	100-TQFP	2.625 V	2.375 V	In System Programmable	5 ns	70 °C	0 °C
Altera EPM7256BQI208-7	Surface Mount	16	5000	256	164 I/O	208-PQFP (28x28)	208-BFQFP	2.625 V	2.375 V	In System Programmable	7.5 ns	85 °C	-40 °C
Altera EPM7256ATC144-7	Surface Mount	16	5000	256	120	144-TQFP (20x20)	144-LQFP	3.6 V	3 V	In System Programmable	7.5 ns	70 °C	0 °C
Altera EPM7256BTI144-7	Surface Mount	16	5000	256	84 I/O	144-TQFP (20x20)	144-LQFP	2.625 V	2.375 V	In System Programmable	7.5 ns	85 °C	-40 °C
Altera EPM7256BTC100-5	Surface Mount	16	5000	256	84 I/O	100-TQFP (14x14)	100-TQFP	2.625 V	2.375 V	In System Programmable	5 ns	70 °C	0 °C
Altera EPM7256BUC169-7	Surface Mount	16	5000	256	141	169-UBGA (11x11)	169-LFBGA	2.625 V	2.375 V	In System Programmable	7.5 ns	70 °C	0 °C
Altera EPM7256AEQC208-7N	Surface Mount	16	5000	256	164 I/O	208-PQFP (28x28)	208-BFQFP	3.6 V	3 V	In System Programmable	7.5 ns	70 °C	0 °C
Altera EPM7256AETC100-7N	Surface Mount	16	5000	256	84 I/O	100-TQFP (14x14)	100-TQFP	3.6 V	3 V	In System Programmable	7.5 ns	70 °C	0 °C
Altera EPM7256AETC144-10N	Surface Mount	16	5000	256	120	144-TQFP (20x20)	144-LQFP	3.6 V	3 V	In System Programmable	10 ns	70 °C	0 °C
Altera EPM7256AETC100-7	Surface Mount	16	5000	256	84 I/O	100-TQFP (14x14)	100-TQFP	3.6 V	3 V	In System Programmable	7.5 ns	70 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EPM7256 Series

IC CPLD 256MC 7.5NS 169UBGA

Documents

Technical documentation and resources

169-UBGA Pkg Info

Datasheet
