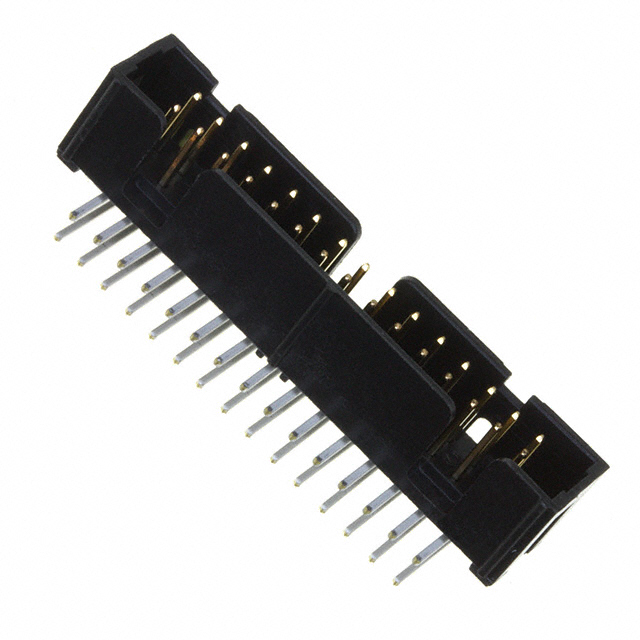

D2530-5002-AR

Active

3M (TC)

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D2530-5002-AR

Active

3M (TC)

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2530-5002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.338 in
Insulation Height	8.59 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D2530 Series

Part	Contact Finish - Post	Mounting Type	Number of Positions	Features	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Shrouding	Insulation Material	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Style	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
3M (TC) D2530-6V0C-AR-WF	Tin	Surface Mount	30	Keying Slot Pick and Place	Brass	Gold	10 çin	0.25 çm	Square	Black	Solder	1 çm	39.4 çin	Male Pin	2.54 mm	0.1 in	Push-Pull	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	9.91 mm	0.39 in	Header	All	1.75 A	Board to Cable/Wire	105 ░C	-55 °C	0.1 in	2.54 mm	2
3M (TC) D2530-5002-AR	Tin	Through Hole Right Angle	30	Keying Slot	Brass	Gold	10 çin	0.25 çm	Square	Black	Solder	1 çm	39.4 çin	Male Pin	2.54 mm	0.1 in	Push-Pull	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0			Header	All	1.75 A	Board to Cable/Wire	105 ░C	-55 °C	0.1 in	2.54 mm	2	2.84 mm	0.112 in	0.338 in	8.59 mm
3M (TC) D2530-6002-AR	Tin	Through Hole	30	Keying Slot	Brass	Gold	10 çin	0.25 çm	Square	Black	Solder	1 çm	39.4 çin	Male Pin	2.54 mm	0.1 in	Push-Pull	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	6.43 mm	0.253 in	Header	All	1.75 A	Board to Cable/Wire	105 ░C	-55 °C	0.1 in	2.54 mm	2	2.84 mm	0.112 in			12.5 mm	0.492 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 2.33

Description

General part information

D2530 Series

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
