1376072-2

Active

TE Connectivity AMP Connectors

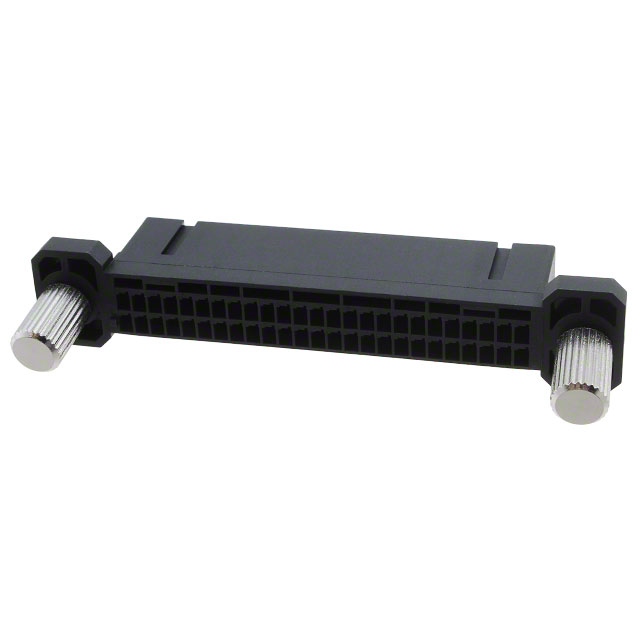

CONN RCPT HSG 50POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 50POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376072-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Jackscrews
Insulation Material	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.148 in
Row Spacing	3.75 mm

CONN RCPT HSG 50POS 2.50MM

Part	Number of Positions	Note	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Type	Contact Termination	Color	Mounting Type	Features	Connector Type	Row Spacing	Row Spacing	Number of Rows	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1376072-2	50	Contacts Not Included	105 ░C	-55 °C	Glass Filled, Polyester, Thermoplastic	Female Socket	Crimp	Black	Free Hanging (In-Line)	Jackscrews	Receptacle	0.148 in	3.75 mm	2	0.098 in	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)

Technical documentation and resources

No documents available
