SSQ-141-02-T-D-RA

Active

Samtec Inc.

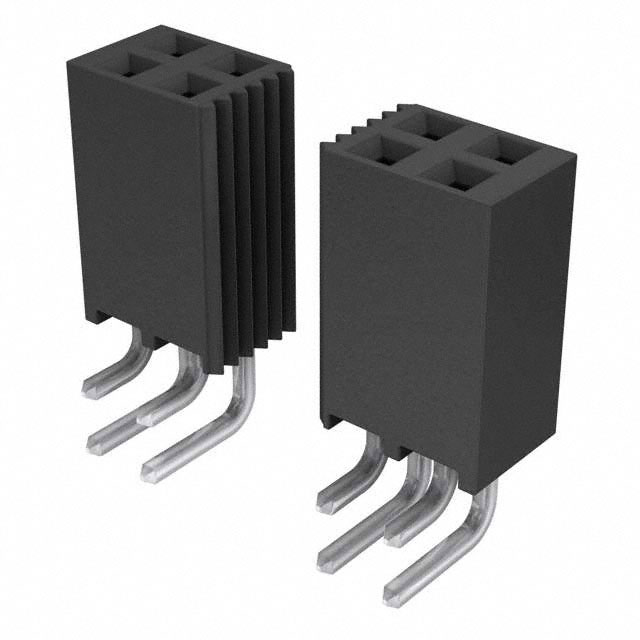

CONN RCPT 82POS 0.1 TIN PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSQ-141-02-T-D-RA

Active

Samtec Inc.

CONN RCPT 82POS 0.1 TIN PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-141-02-T-D-RA

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	82
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-141 Series

Part	Insulation Height [z]	Insulation Height [z]	Insulation Color	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Number of Positions	Mounting Type	Contact Type	Contact Material	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Termination	Style	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SSQ-141-03-T-S-RA	0.095 in	2.41 mm	Black	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Push-Pull	Receptacle	7.62 mm	0.3 "	Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	41	Through Hole Right Angle	Forked	Phosphor Bronze	All	UL94 V-0	1	Solder	Board to Board Cable
Samtec Inc. SSQ-141-03-S-S			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	41	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	1	Solder	Board to Board Cable	Gold	0.335 "	8.51 mm	10 mm	0.394 in	30 Áin	0.76 Ám
Samtec Inc. SSQ-141-02-T-D-RA			Black	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	82	Through Hole Right Angle	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable		0.195 in	4.95 mm	2.54 mm	0.1 in			2.54 mm	0.1 in
Samtec Inc. SSQ-141-03-S-D			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	82	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable	Gold	0.335 "	8.51 mm	10 mm	0.394 in	30 Áin	0.76 Ám	2.54 mm	0.1 in
Samtec Inc. SSQ-141-02-G-D-RA			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Gold	465 VAC 655 VDC	82	Through Hole Right Angle	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable	Gold	0.195 in	4.95 mm	2.54 mm	0.1 in	20 µin	0.51 µm	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. SSQ-141-02-T-D			Black	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	82	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable		0.335 "	8.51 mm	4.93 mm	0.194 in			2.54 mm	0.1 in
Samtec Inc. SSQ-141-02-S-D-RA			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	82	Through Hole Right Angle	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable	Gold	0.195 in	4.95 mm	2.54 mm	0.1 in	30 Áin	0.76 Ám	2.54 mm	0.1 in
Samtec Inc. SSQ-141-02-S-S			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	41	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	1	Solder	Board to Board Cable	Gold	0.335 "	8.51 mm	4.93 mm	0.194 in	30 Áin	0.76 Ám
Samtec Inc. SSQ-141-03-G-D			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Gold	465 VAC 655 VDC	82	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	2	Solder	Board to Board Cable	Gold	0.335 "	8.51 mm	10 mm	0.394 in	20 µin	0.51 µm	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. SSQ-141-01-S-S			Black	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Push-Pull	Receptacle			Square	0.1 in	2.54 mm	Tin	465 VAC 655 VDC	41	Through Hole	Forked	Phosphor Bronze	All	UL94 V-0	1	Solder	Board to Board Cable	Gold	0.335 "	8.51 mm	2.64 mm	0.104 in	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.01
		10	$ 6.81
		100	$ 5.79
		500	$ 5.78

Description

General part information

SSQ-141 Series

82 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin

Documents

Technical documentation and resources
