K150-1016-00

Active

Jacob GmbH

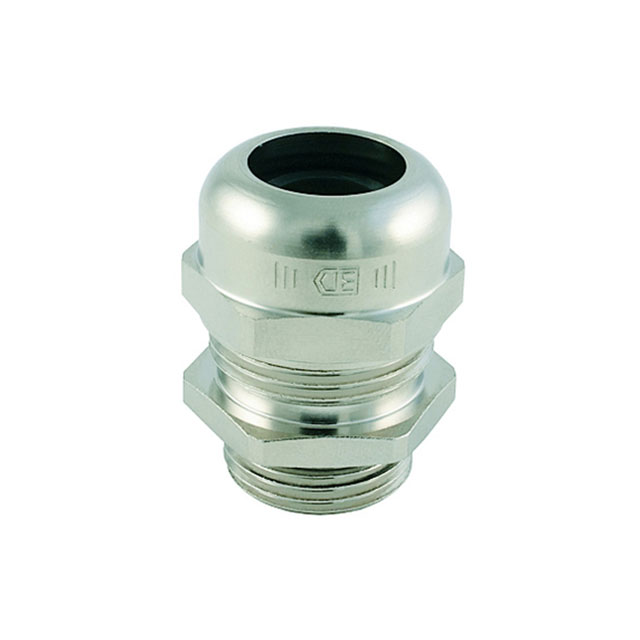

CABLE GLAND 5-10.5MM M16 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 5-10.5MM M16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	K150-1016-00

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP69, IP66, IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	0.413 in
Outside Cable Diameter (Max) [Max]	10.5 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Ingress Protection	Type	Material
Jacob GmbH K150-1016-00	Silver	0.413 in	10.5 mm	100 °C	-40 °C	M16x1.5	7 mm	0.276 in	5 mm	0.197 in	O-Ring Seal	IP66 IP68 IP69	Cable Gland	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
