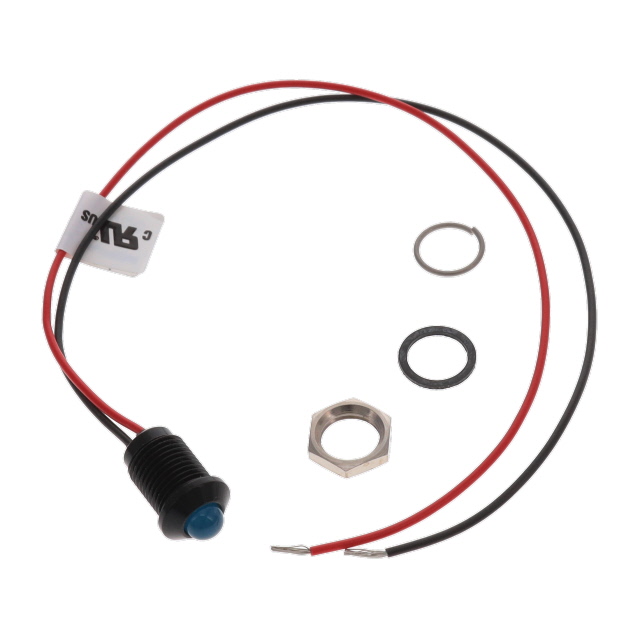

Q8P5BXXB12E
ActiveAPEM
INDICATOR 8MM PM PROMINENT BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q8P5BXXB12E
ActiveAPEM
INDICATOR 8MM PM PROMINENT BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8P5BXXB12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1600 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Q8P5BXXB Series
| Part | Type | Panel Cutout Shape | Lens Transparency | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Size [diameter] | Viewing Angle | Ingress Protection | Termination Style | Lens Color | Voltage | Millicandela Rating | Lens Style | Ratings | Lamp Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APEM | LED | Round | Diffused | 8 mm | 0.315 in | 5 mm Dia | 100 ° | IP67 | Wire Leads - 7.87" (200.00mm) | Blue | 12 V | 1600 mcd | Round with Domed Top | DC | Blue |
APEM | LED | Round | Diffused | 8 mm | 0.315 in | 5 mm Dia | 100 ° | IP67 | Wire Leads - 7.87" (200.00mm) | Blue | 2 V | 1600 mcd | Round with Domed Top | Blue | |
APEM | LED | Round | Diffused | 8 mm | 0.315 in | 5 mm Dia | 100 ° | IP67 | Wire Leads - 7.87" (200.00mm) | Blue | 24 V | 1600 mcd | Round with Domed Top | DC | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
Q8P5BXXB Series
LED Panel Indicator Blue Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
Documents
Technical documentation and resources
