UCBJR220

Active

Cinch Connectivity Solutions Trompeter

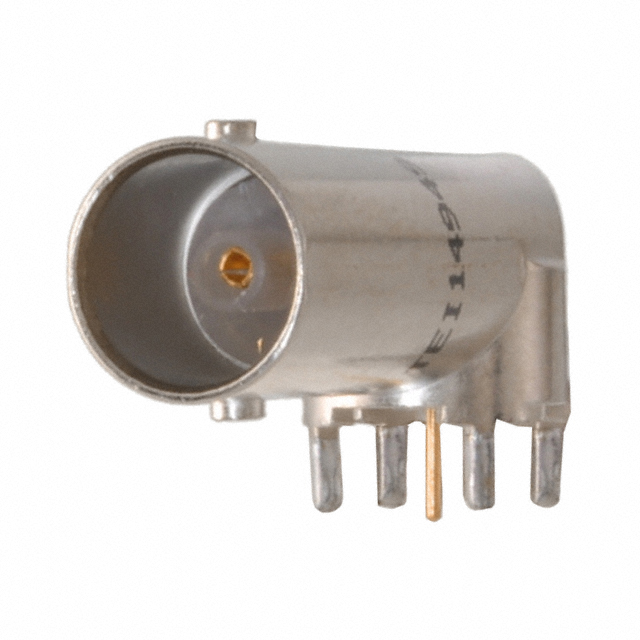

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	UCBJR220

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

CONN BNC JACK R/A 75 OHM PCB

Part	Body Material	Center Contact Material	Body Finish	Connector Type	Connector Style	Voltage Rating	Mounting Type	Contact Termination	Shield Termination	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Dielectric Material	Impedance
Cinch Connectivity Solutions Trompeter UCBJR220	Brass	Beryllium Copper	Nickel	Female Socket, Jack	BNC	500 V	Through Hole, Right Angle	Solder	Solder	Gold	Bayonet Lock	4 GHz	1	-65 ░C	165 °C	Silver	Polytetrafluoroethylene (PTFE)	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
